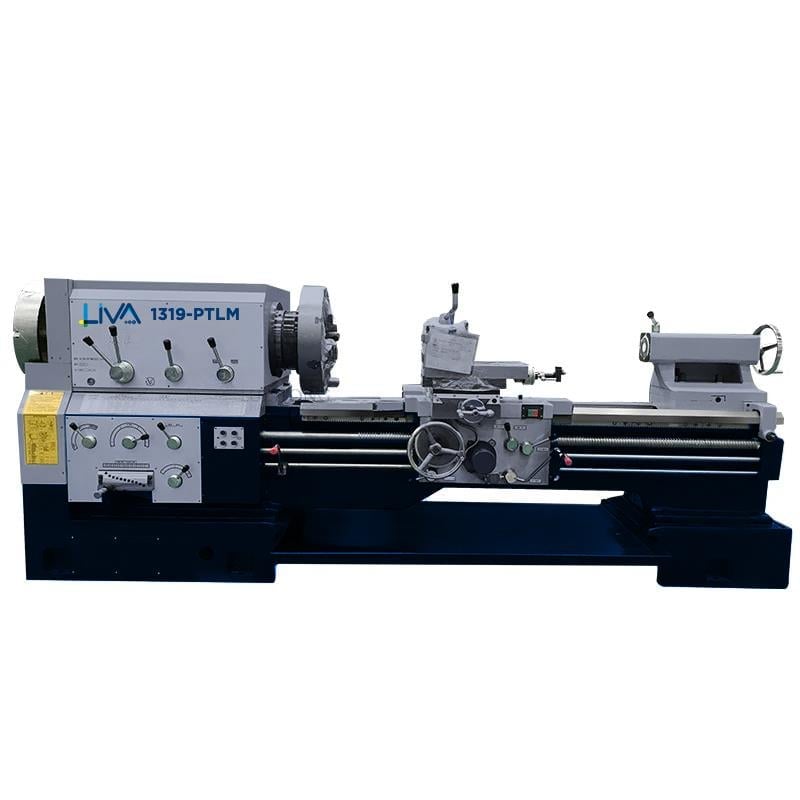

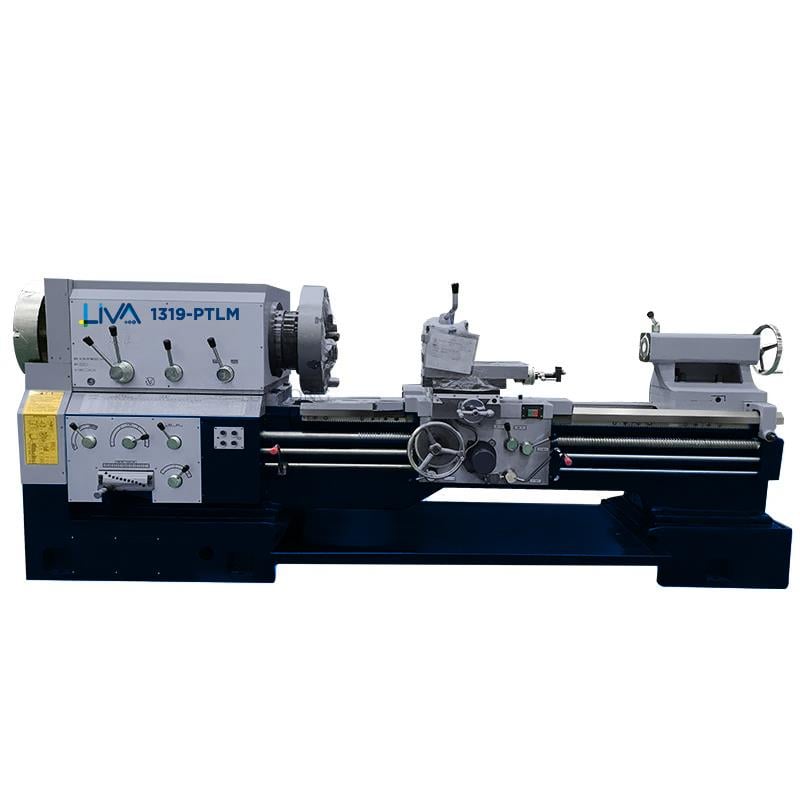

1319x500-PTLM Pipe Threading Lathe Machine

1319x500-PTLM Pipe Threading Lathe Machine

Brand : Liva
Stock Code (1319x500-PTLM)
Est. Delivery Time45-60 Days After O.C.
Shipment Place Turkiye
Payment Terms% 50 O.C, % 50 B.S.
Made In
Min. Order Qty.1 Pcs.
Warranty1 Year
Delivery TermsEx-Works - Turkiye
Stock Amount : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Item is out of stock.
Price : 31,326.46 $
Swing over bed mm 630/800
Swing over cross slide mm 340/520
Distance between centers mm 1500/3000
Pipe threading range mm 50-193
Guideway width mm 550
Max. load capacity T 3
Spindle bore mm 200
Spindle speed range rpm 20-550
Spindle speed steps - 4
Chuck size mm 520 manual/4-jaw
Tool shank size mm 32*32
X axis travel mm 320/420
Z axis travel mm 1350/2850
X axis feed steps/range mm/r 22/0.02-0.45
Z axis feed steps/range mm/r 26/0.07-1.33
X axis rapid traverse mm/min 2300
Z axis rapid traverse mm/min 4000
Metric thread kinds /range mm 1-15
Inch thread kinds /range T.P.I 14-1
Tailstock quill diameter mm 100
Tailstock quill taper - MT5
Tailstock quill travel mm 250
Main motor power kw 11
Rapid traverse motor kw 0.3
Coolant motor power kw 0.125
Weight for 1500 kg 4300
Weight for 3000 kg 5500
Dimension for 1500 mm 3700*1550*1550
Dimension for 3000 mm 5200*1550*1550
