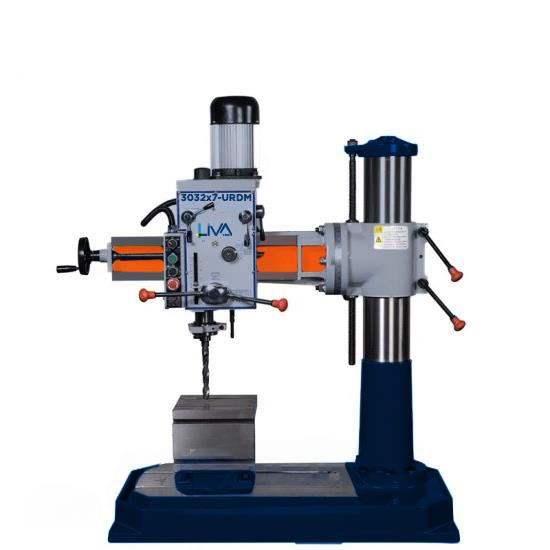

3032x7-URDM Universal Radial Drilling Machine

3032x7-URDM Universal Radial Drilling Machine

Brand : Liva
Stock Code (3032x7-URDM)
Est. Delivery Time45-60 Days After O.C.
Shipment Place Turkiye
Payment Terms% 50 O.C, % 50 B.S.
Made In
Min. Order Qty.1 Pcs.
Warranty1 Year
Delivery TermsEx-Works - Turkiye
Stock Amount : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Item is out of stock.
Price : 2,242.14 $
Max. drilling dia. mm 32
Distance between spindle nose and table surface mm 275-680
Distance from spindle axis to column surface mm 300-700
Spindle travel mm 130
Spindle taper - MT3
Spindle speed range rpm 100-1600
Spindle speed steps - 8
Spindle feeding range mm/r 0.08-0.23
Spindle feeding steps - 3
Main motor power kw 0.75/1.1
Lifting motor power kw -
Machine weight kg 415/540
Overall dimension mm 1220*620*1280
1270*690*1370
