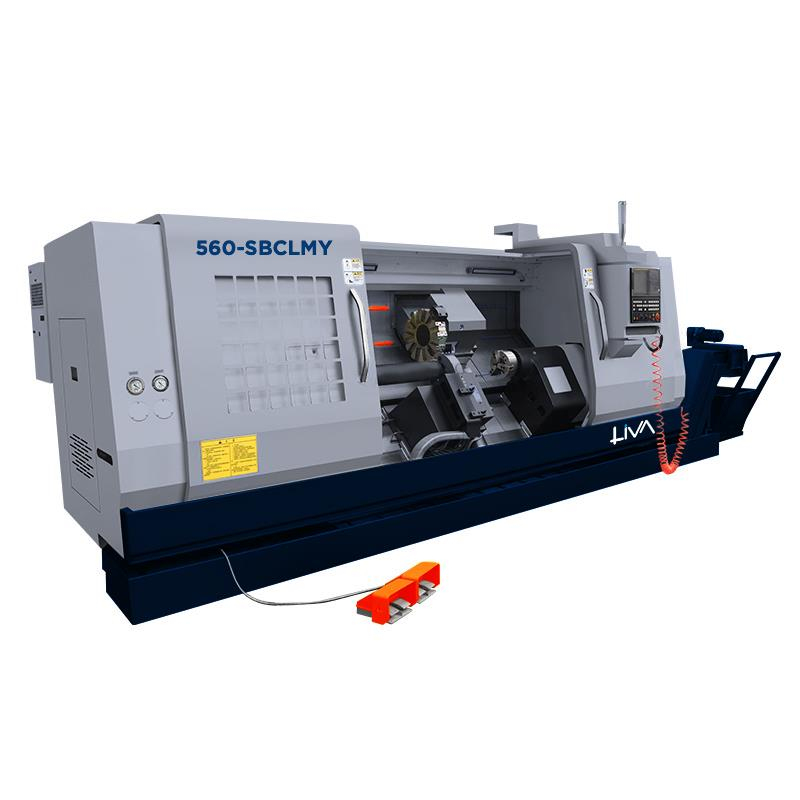

560-SBCLMY Slant Bed -CNC Lathe Machine

560-SBCLMY Slant Bed -CNC Lathe Machine

Brand : Liva
Stock Code (560-SBCLMY)
Est. Delivery Time45-60 Days After O.C.
Shipment Place Turkiye
Payment Terms% 50 O.C, % 50 B.S.
Made In
Min. Order Qty.1 Pcs.
Warranty1 Year
Delivery TermsEx-Works - Turkiye
Stock Amount : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Item is out of stock.
Price : 40,439.00 $
Swing over bed mm 560
Max. turning diameter mm 420
Swing over cross slide mm 380
Distance between centers mm 1000/1500/2000/3000
Slant bed layout angle ° 45
Spindle nose type - A2-8
Spindle bore taper - Metric 100
Spindle bore mm 80
Spindle speed steps - Stepless
Spindle speed range rpm 50-1500
Hydraulic chuck in 12
Main spindle motor KW 15
Turret/tool post - Hydraulic turret 12 position
Tool shank size mm 25×25
Boring tool holder size mm φ40
X axis travel mm 225
Z axis travel mm 1000/1500/2000/3000
Motor torque Nm 12/22
X axis rapid traverse mm/min 12000 Hard guideway
Z axis rapid traverse mm/min 12000 Hard guideway
X/Z axis mm 0.001
Tailstock quill diameter mm φ110/120
Tailstock quill taper   MT5
Tailstock quill travel mm 100
Coolant pump motor KW 0.37
Width * Height mm 2050×2300
Length mm 5600/6200/6600/7600
Machine weight T 7.0/8.0/10.5/15
