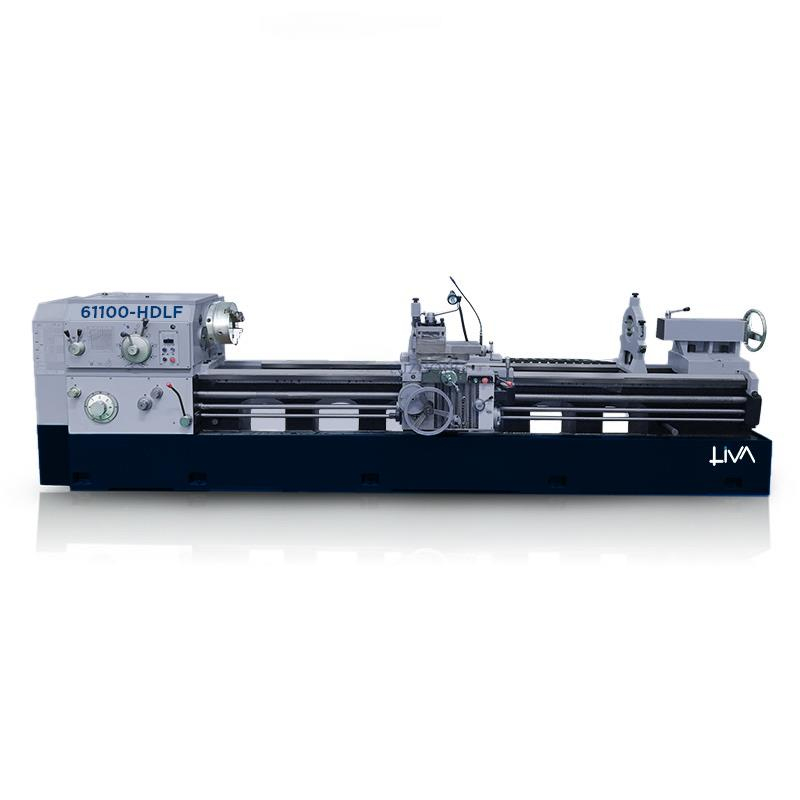

61100x6000-HDLF Heavy Duty Lathe

61100x6000-HDLF Heavy Duty Lathe

Brand : Liva
Stock Code (61100x6000-HDLF)
Est. Delivery Time45-60 Days After O.C.
Shipment Place Turkiye
Payment Terms% 50 O.C, % 50 B.S.
Made In
Min. Order Qty.1 Pcs.
Warranty1 Year
Delivery TermsEx-Works - Turkiye
Stock Amount : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Item is out of stock.
Price : 40,119.30 $
Swing over bed mm 1000
Swing over gap mm -
Swing over cross slide mm 680
Distance between centers mm 1500/2000/3000/4000/5000/6000
Guideway width mm 600
Max. load capacity T 4
Spindle bore mm 104
Spindle bore taper - Metric120/MT5
Spindle nose type - C11
Spindle speed range rpm 5.4-720
Spindle speed steps - 18
Chuck mm 400 Manual 3-jaw
Tool size mm 32*32
X axis travel mm 420
Z axis travel mm 1350/1850/2850/3850/4850/5850
X axis feed steps /range mm/r 64/0.05-12.15
Z axis feed steps /range mm/r 64/0.1-24.3
X axis rapid traverse mm/min 2300
Z axis rapid traverse mm/min 4000
Metric thread kinds /range mm 50/1-240
Inch thread kinds /range T.P.I 26/14-1
Module thread kinds /range mm 53/0.5-120
DP thread kinds /range D.P. 24/28-1
Tailstock quill diameter mm 120
Tailstock quill taper - MT6
Tailstock quill travel mm 250
Main motor power kw 11
Rapid traverse motor power kw 1.1
Coolant motor power kw 0.125
Weight for 1500 kg 5300
Weight for 2000 kg 5700
Weight for 3000 kg 6400
Weight for 4000 kg 7100
Weight for 5000 kg 7800
Weight for 6000 kg 8500
Dimension for 1500 mm 4000*1750*1750
Dimension for 2000 mm 4500*1750*1750
Dimension for 3000 mm 5500*1750*1750
Dimension for 4000 mm 6500*1750*1750
Dimension for 5000 mm 7500*1750*1750
Dimension for 6000 mm 8500*1750*1750
