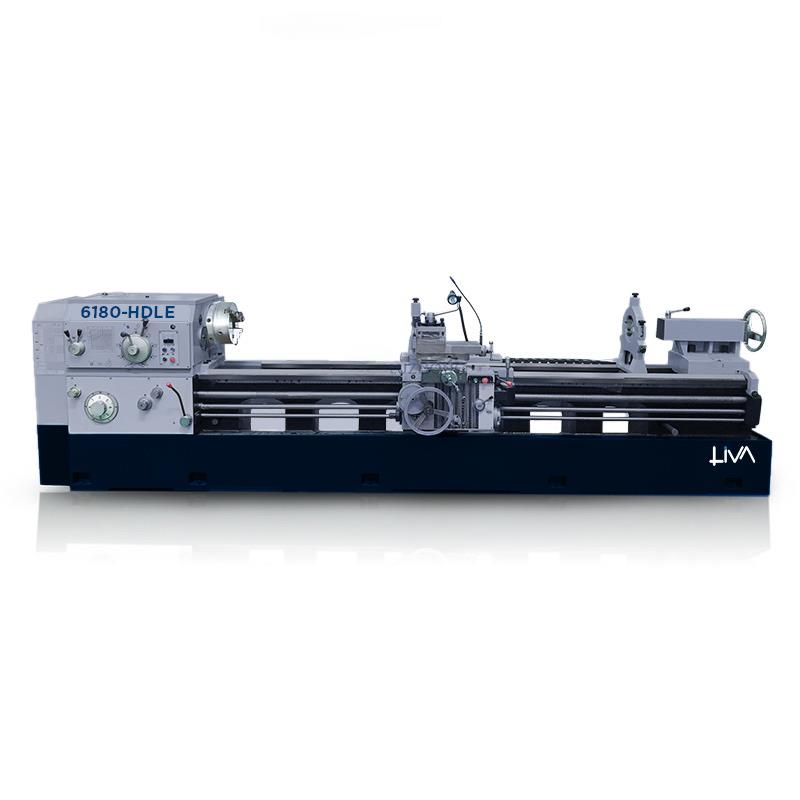

6180x5000-HDLE Heavy Duty Lathe

6180x5000-HDLE Heavy Duty Lathe

Brand : Liva
Stock Code (6180x5000-HDLE)
Est. Delivery Time45-60 Days After O.C.
Shipment Place Turkiye
Payment Terms% 50 O.C, % 50 B.S.
Made In
Min. Order Qty.1 Pcs.
Warranty1 Year
Delivery TermsEx-Works - Turkiye
Stock Amount : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Price : 0.00 $
Swing over bed mm 800
Swing over gap mm -
Swing over cross slide mm 520
Distance between centers mm 1500/2000/3000/4000/5000/6000
Guideway width mm 550
Max. load capacity T 3
Spindle bore mm 104
Spindle bore taper - Metric120/MT5
Spindle nose type - C11
Spindle speed range rpm 6-800
Spindle speed steps - 18
Chuck mm 315 Manual 3-jaw
Tool size mm 30*30
X axis travel mm 420
Z axis travel mm 1350/1850/2850/3850/4850/5850
X axis feed steps /range mm/r 64/0.05-12.15
Z axis feed steps /range mm/r 64/0.1-24.3
X axis rapid traverse mm/min 2300
Z axis rapid traverse mm/min 4000
Metric thread kinds /range mm 50/1-240
Inch thread kinds /range T.P.I 26/14-1
Module thread kinds /range mm 53/0.5-120
DP thread kinds /range D.P. 24/28-1
Tailstock quill diameter mm 100
Tailstock quill taper - MT5
Tailstock quill travel mm 250
Main motor power kw 11
Rapid traverse motor power kw 1.1
Coolant motor power kw 0.125
Weight for 1500 kg 4100
Weight for 2000 kg 4500
Weight for 3000 kg 5200
Weight for 4000 kg 5900
Weight for 5000 kg 6600
Weight for 6000 kg 7300
Dimension for 1500 mm 3800*1500*1450
Dimension for 2000 mm 4300*1500*1450
Dimension for 3000 mm 5300*1500*1450
Dimension for 4000 mm 6300*1500*1450
Dimension for 5000 mm 7300*1500*1450
Dimension for 6000 mm 8300*1500*1450
