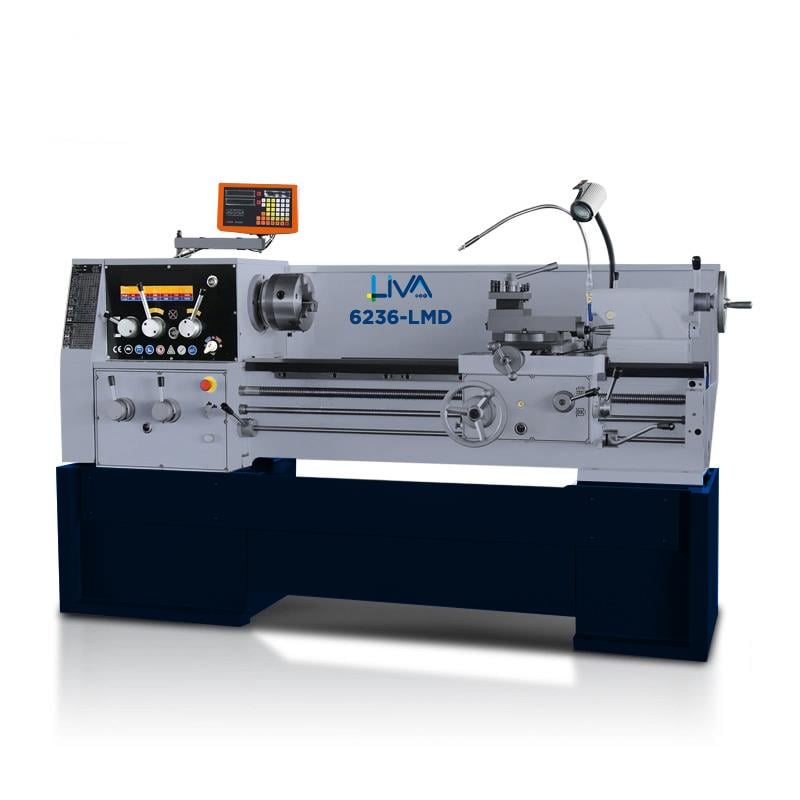

6236-LMD Lathe Machine

6236-LMD Lathe Machine

Brand : Liva
Stock Code (6236-LMD)
Est. Delivery Time45-60 Days After O.C.
Shipment Place Turkiye
Payment Terms% 50 O.C, % 50 B.S.
Made In
Min. Order Qty.1 Pcs.
Warranty1 Year
Delivery TermsEx-Works - Turkiye
Stock Amount : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Price : 0.00 $
Swing over bed mm 360
Swing over cross slide mm 200
Swing over gap mm 540
Distance between centers mm 750/1000
Spindle bore mm 52
Spindle bore taper - MT6
Spindle speed range rpm 30-1600
Spindle speed steps - 12
Cross slide travel mm 240
Top tool post travel mm 140
Tool size mm 20 * 20
Longitudinal feeds range mm/r 0.039-1.05
Cross feeds range mm/r 0.019-0.52
Kinds of metric threads kinds 25
Range of metric threads mm 0.5-20
Kinds of inch threads kinds 35
Range of inch threads T.P.I. 1-80
Tailstock quill diameter mm 60
Tailstock quill taper - MT4
Tailstock quill travel mm 100
Main motor power kw 3
Coolant motor power kw 0.09
Weight for 750 kg 1500
Weight for 1000 kg 1600
Dimension for 750 mm 2200*1140*1600
Dimension for 1000 mm 2400*1140*1600
