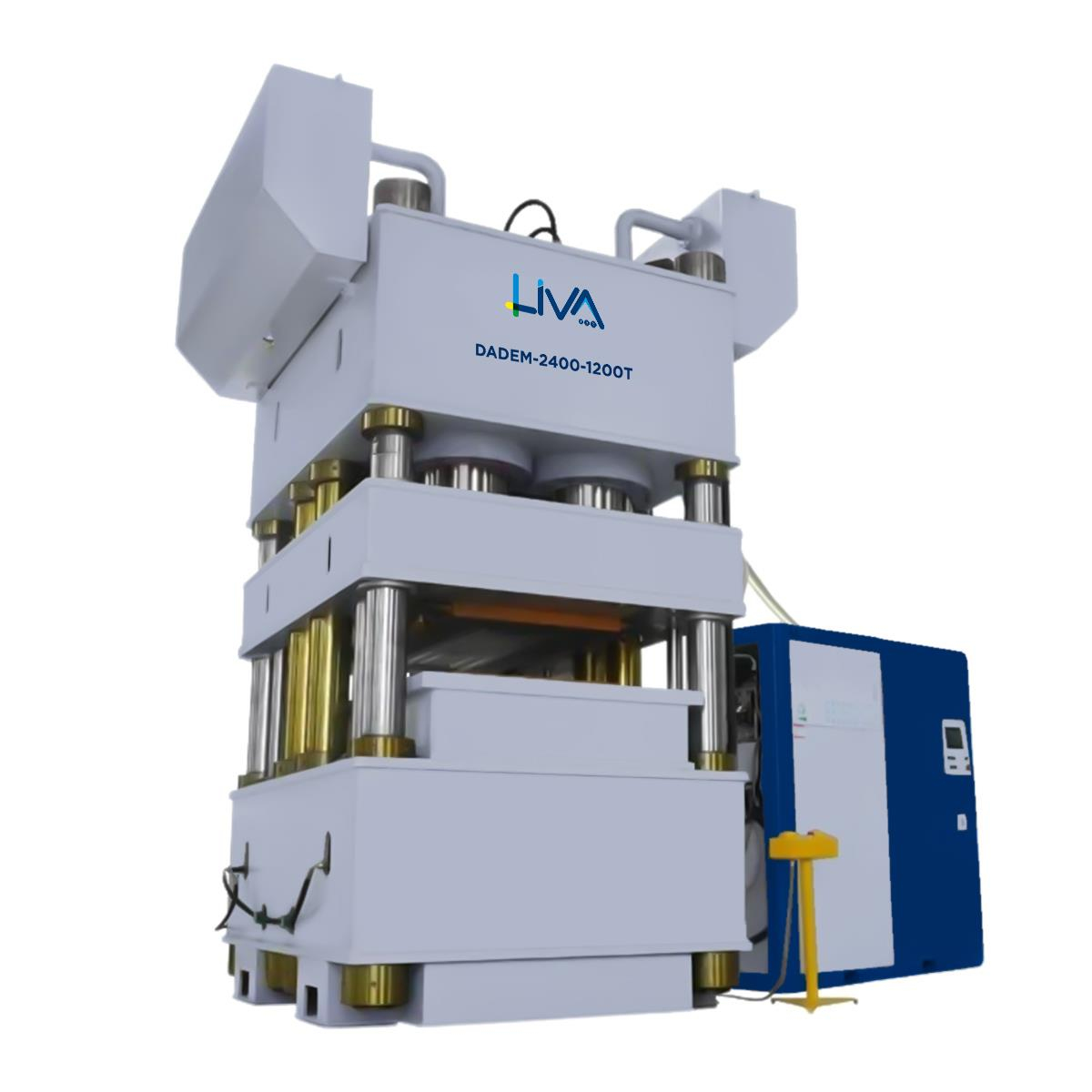

DADEM-2400-1200T Double Action Door Embossing Machine (DADEM-2400-1200T)

• The whole welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the door embossing machine.
• One skin mold is for one design, different skin molds with same size can be used on the same mold frame.
• The lifetime for each skin mold is more than 300,000 pieces of sheets and the design depth of each skin mold is within 15mm.
• Column-type structure can achieve higher strength, stable working process and longer lifetime.
• The machine can make the full designs on the door sheet by the mold frame and skin mold.

⚫ JB/T3818-99	⚫ GB17120-97
⚫ GB/T 3766-2001	⚫ JB9967-99
⚫ GB5226.1-2002	⚫ JB/T8609-97
⚫ GB/T 9166-2009	⚫ EN ISO 12100:2010

Nominal Force		KN	24000
Return Force		KN	260
Max Pressure Of Main Cylinder		Mpa	25
Stroke Of Slider		mm	500
Slider Running Speed		mm	600
Stroke Speed Of Slide	Descent	mm/s	120-150
	Pressing	mm/s	8-12
	Return	mm/s	120
Table Size	L-R	mm	1500
	F-B	mm	2500
Knock Out Pressure		KN	12000
Motor Power		KW	52

Name	Picture	Remark
Servo motor		1. Servo motor control can improve the working speed and save energy 2. Control the working speed
Hydraulic valve		reliable, durable and less hydraulic shock, with shorter connection pipeline and fewer releases points.
Electric components		SIEMENS	Germany
Hydraulic double vane pump		High rated pressure, compact structure, high efficiency and low noise
Double-push button		Movable and compact controller
Cylinder		Polished and chromed with high rigidity treatment
New design hydraulic station		Hydraulic station with closed cover is beautiful design and meet safety standards
Heat exchanger		Lower the temperature of the electric cabinet
PLC		INNOVANCE	China
Touch screen control		Check the machine status and control easily

	Skin mold
	Upper mold	1610*530*31mm
	Bottom mold	1600*520*35mm
	Material	#45 high quality steel
	Weight	Around 450kg
	Mold frame
	Upper mold frame	2000*1000*80mm
	Upper mold frame	2000*1000*80mm
	Material	#45 high quality steel
	Weight	Around 3500kg

Remarks:

1. Different skin molds with same size can share the same mold frame.

2. Each skin mold can be used for more than 300,000 times.

3. LİVAMACH can design different kinds of skin molds according to customer requirements.

1. Three 20OT containers are required for loading this machine.
2. The machine will be disassembled into several parts, all parts will be protected by plastic film.
3. All main heavy parts will be fastened in the container by the steel wire ropes, which can protect the parts from being damaged during shipment.
4. Customer should ask for installation service from supplier after receiving the machines.

• Warranty period is 12 months after receiving the machine; any quick-wear part is available for free during guarantee period under proper operation, customers only need to pay for the freight of the replaced new parts.
• Installation and training service is optional for customers, any client can ask for this service from LİVAMACH, they should assume the airfare and accommodation for our engineer during the journey. The salary for each engineer is USD300 per day.
