FEATURES
ENERGY CONSERVATION 50%
Taking the 100t electric press brake as an example, the power consumption of the main engine of the electric press brake is about 12kW·h/d, while the hydraulic press brake is about 24kW · h/d. So the energy saving of electric press brake is about 50%.
FAST SPEED 30%
The electric press brake Y axis working speed up to 50 mm/s, while the same level hydraulic press brake Y axis working speed is only 15 mm/s. Which make the electric press brake up to 30% faster than hydraulic press brake with shorter cycle and response time.
LOW NOISE
Compared with hydraulic press brake, electric press brake only make sound during the ram movement, which can create a comfortable working environment for workers and improve work efficiency.
HIGH ACCURACY
The Y-axis accuracy and X-axis accuracy of hydraulic press brake are 0.05mm, while the Y-axis accuracy of electric press brake is 0.01mm and the X-axis accuracy is 0.02mm, which greatly improves the bending accuracy.

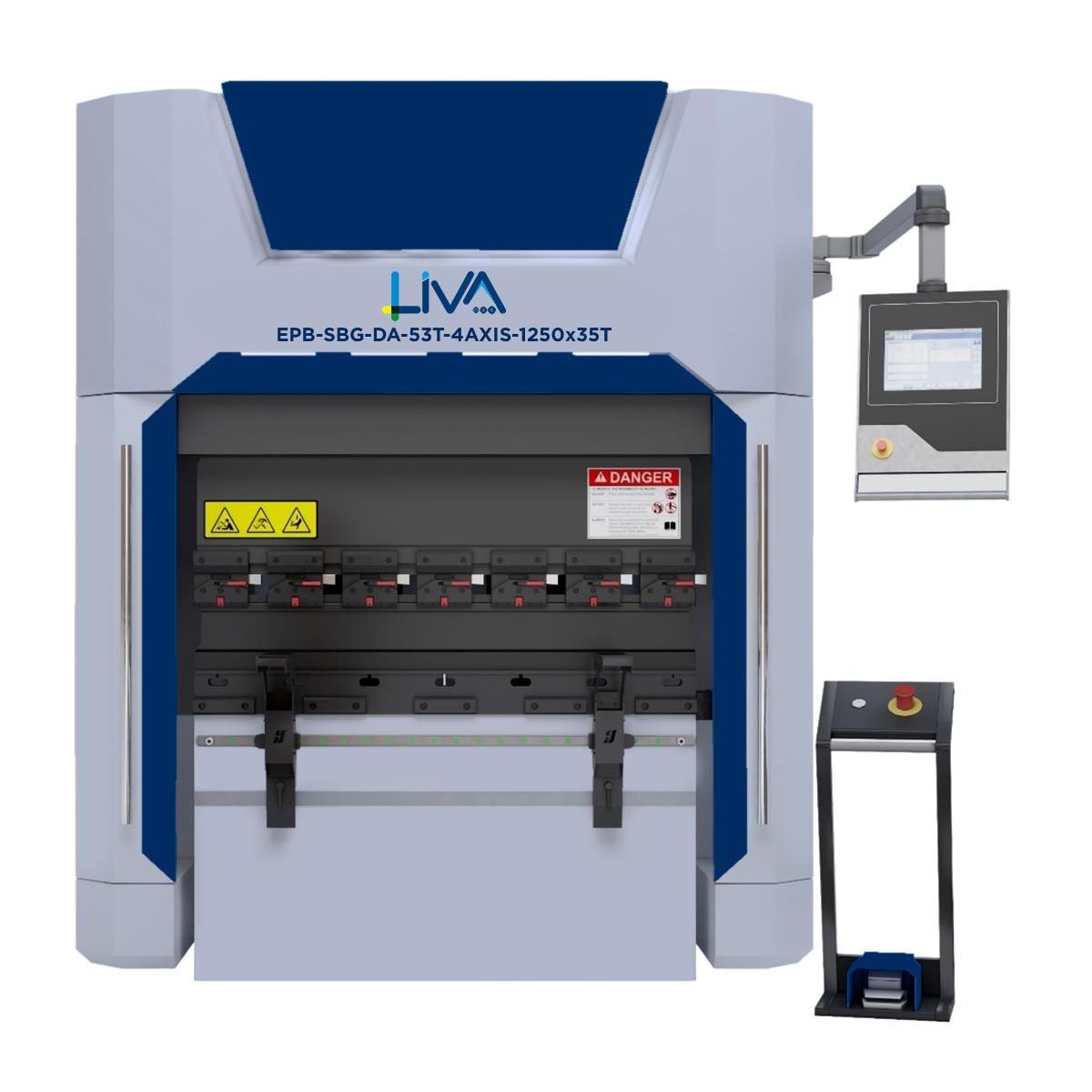

LİVAMACH eband press brake features a rigid frame for minimum deflection under the load. Machine welding is made by welding apparatus & welding robots. After the welding, we make a stress relief process by high-temperature tempering or vibration system to improve the mechanical properties of materials, reduce deformation and rebound, improve the stability and durability of the workpiece, and machine frame sensitivity is protected for a long lifetime.
The machining process can handle large workpieces due to their overhead structure and extended range of movement. It can be automated and integrated with CNC (Computer Numerical Control) technology, enabling efficient and consistent production to perform a wide range of machining tasks, including milling, drilling, cutting, and trimming.

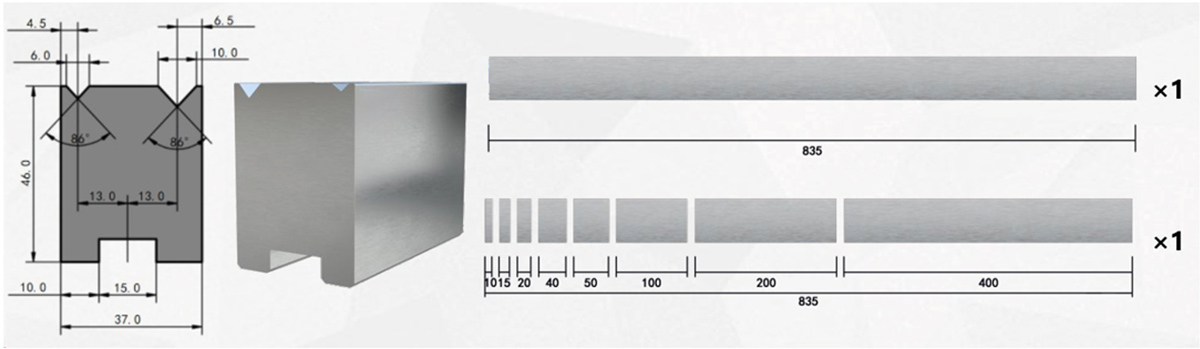

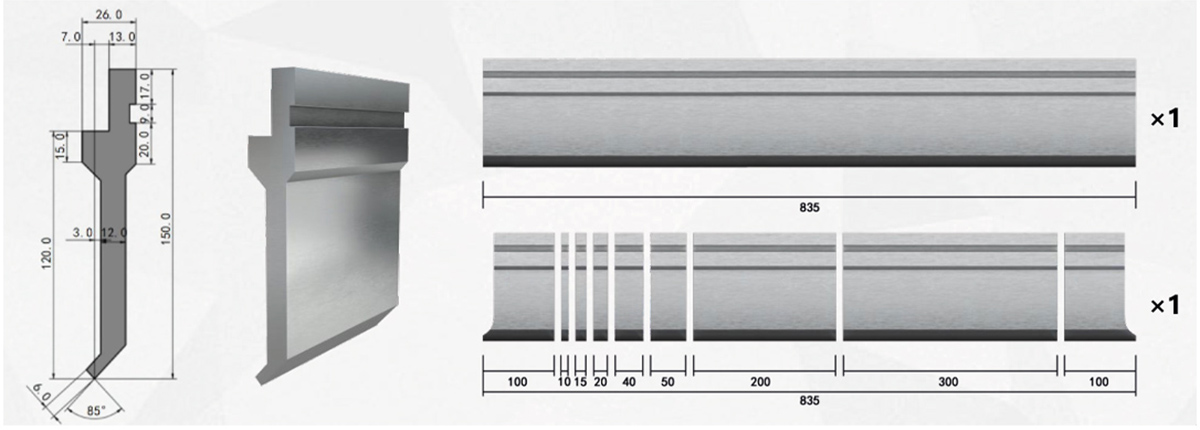

LİVAMACH provides you with targeted tooling to improve production efficiency, machining accuracy, and consistency, meeting different bending needs. One set of the following punch and die will be given for free, and other punches and dies will need to be purchased separately.,
Delem system has advanced functions, a user-friendly interface, reliability, and stability in the field of CNC machine tool control, as well as flexibility and adaptability, which can meet different processing needs. The Delem 60 Touch series outperforms the Delem 50 with enhanced precision and flexibility due to advanced algorithms, providing a more streamlined and efficient bending process. The intuitive touchscreen interface of both systems offers user-friendly operation, but the 60 Touch excels in delivering higher accuracy and real-time monitoring capabilities, making it ideal for complex and precise metal bending applications.
The Delem Profile-TL series offline software gives users the ability to program offline and operate on a computer without having to be connected to a physical machine. With this feature, users can fine-tune operations before actual production and spot potential problems in time. Before importing the operating system, the user can fine-tune the production settings in the software environment, so that after completing the current bending task, a new bending task can be started immediately, no longer having to spend time setting up the bending program on the controller system screen of the press brake. You can get it for free at LİVAMACH!
Retractable Sheet Support ensures precision in metal bending operations. Featuring adjustable metal positions, it accommodates various sheet sizes. Especially for long sheet, it can prevent deformation caused by falling during bending. The retractable design simplifies loading and unloading, enhancing efficiency. Crafted from durable steel, it withstands the rigors of bending. Its accuracy and integration with the press brake control system enable consistent, high-quality results.
The integration of automated bending robots and press brake as a cutting-edge manufacturing solution. The system optimizes efficiency by combining precise bending capabilities with the versatility of the robotic arm, while efficient connections are also important. It is controlled by a precision numerical control system that simplifies the bending process, providing high precision, fast production and seamless material handling. This technology is particularly beneficial in industries that require complex metal products.
FAST CLAMP
LİVAMACH 3-step fast tooling clamp, the quick clamping feature allows for individual operation when dealing with longer punches that require the use of multiple clamps. This type of clamp is suitable for production environments where frequent workpiece changes are required, significantly improving work efficiency.
BALL SCREW
A ball screw is a mechanical linear actuator that converts rotational motion into linear motion. By controlling the rotation of the threaded shaft, the linear movement of the nut or slider can be precisely controlled. This reduces energy consumption, improves efficiency, and reduces wear, extending the life of the system.
FRONT SUPPORT
By providing adjustability and versatility, the front support is suitable for workpieces of different shapes, sizes, and processing requirements, helping to locate and support workpieces to ensure their stability during the processing process and reducing errors or damage caused by workpiece deformation or movement.
HYDRAULIC TOOL CLAMP *
WILA’s hydraulic tool clamp is the perfect match with your tools. WILA’s state-of-the-art Clamping and Crowning systems offer the ultimate solution when it comes to efficiently changing tools - both hydraulically and mechanically. Several innovations have made the changeover process easier and safer.
SQUARING ARMS *
The Squaring Arm swiftly attaches to a flat surface die by using strong magnets, the product has a sturdy stainless steel table with a squaring arm that aligns metal pieces. It enables press brake operators to make precise angled corner bends quickly and safely, keeping hands clear of the press brake.
TOOLING CABINET *
LİVAMACH offers industrial grade bending machine tooling cabinets with good quality and large capacity. We can customize a variety of sizes according to customer needs, such as small cabinets. Which can better store and keep the working environment clean.
BACK LIGHT CURTAIN
The back light curtain system will immediately send a signal to trigger the press brake to stop or slow down to avoid potential dangers by transmitting and receiving optical signals to monitor whether people are entering or approaching the rear area.
SAFETY DOOR SWITCH
When the electrical cabinet door is opened, the power outage device will automatically cut off the power supply to the electrical system, preventing personnel from coming into contact with live components and circuits.
SAFETY RELAY *
In the event of unexpected shutdowns, or abnormal conditions, the safety relay will promptly restore the press brake system to a secure state to ensure the mitigation of potential dangers and accidents, safeguarding individuals, equipment, and the surrounding environment.
SAFETY GUARD SWITCH *
The safety guard switch can detect the opening and closing state of the guardrail door. When the guardrail door is opened, the power-off device will immediately cut off the power supply of the press brake to stop its operation, to guarantee the operators' safety.
LASER PROTECTION *
The MSD and DSP laser protection has detection area, if an opaque object interrupts the beam, the control system stops the device. Thus fully protects the personal safety of the operator, to avoid the danger caused by the rapid movement of the press brake slider.
ELECTRICAL CABINET AC *
Electrical cabinet air conditioner can ensure stable operation of equipment, extend equipment life, improve performance, avoid production interruptions, and protect the environment.
LİVAMACH always insists on selecting high-quality materials and high-performance configurations to ensure that our products are at a high level in terms of performance, durability and reliability.
LİVAMACH provides these parameters that can be used to compare the performance differences between different products, evaluate the applicability and performance of products, and allow users to make decisions based on specific needs.
AFTER SALES SERVICE
The warranty period is 36 months after receiving the machine; any quick-wear part is available for free during the guarantee period under proper operation, customers only need to pay for the freight of the replaced new parts. Installation and training services are optional for customers, any client can ask for this service from LİVAMACH, and they should assume the airfare and accommodation for our engineer during the journey. The salary for each engineer is USD300 per day.
TERM OF PAYMENT
30% by T/T in advance, 70% by T/T before delivery.
LEAD TIME
30 days after receiving advance payment, sometimes we will have ready machines in stock.
