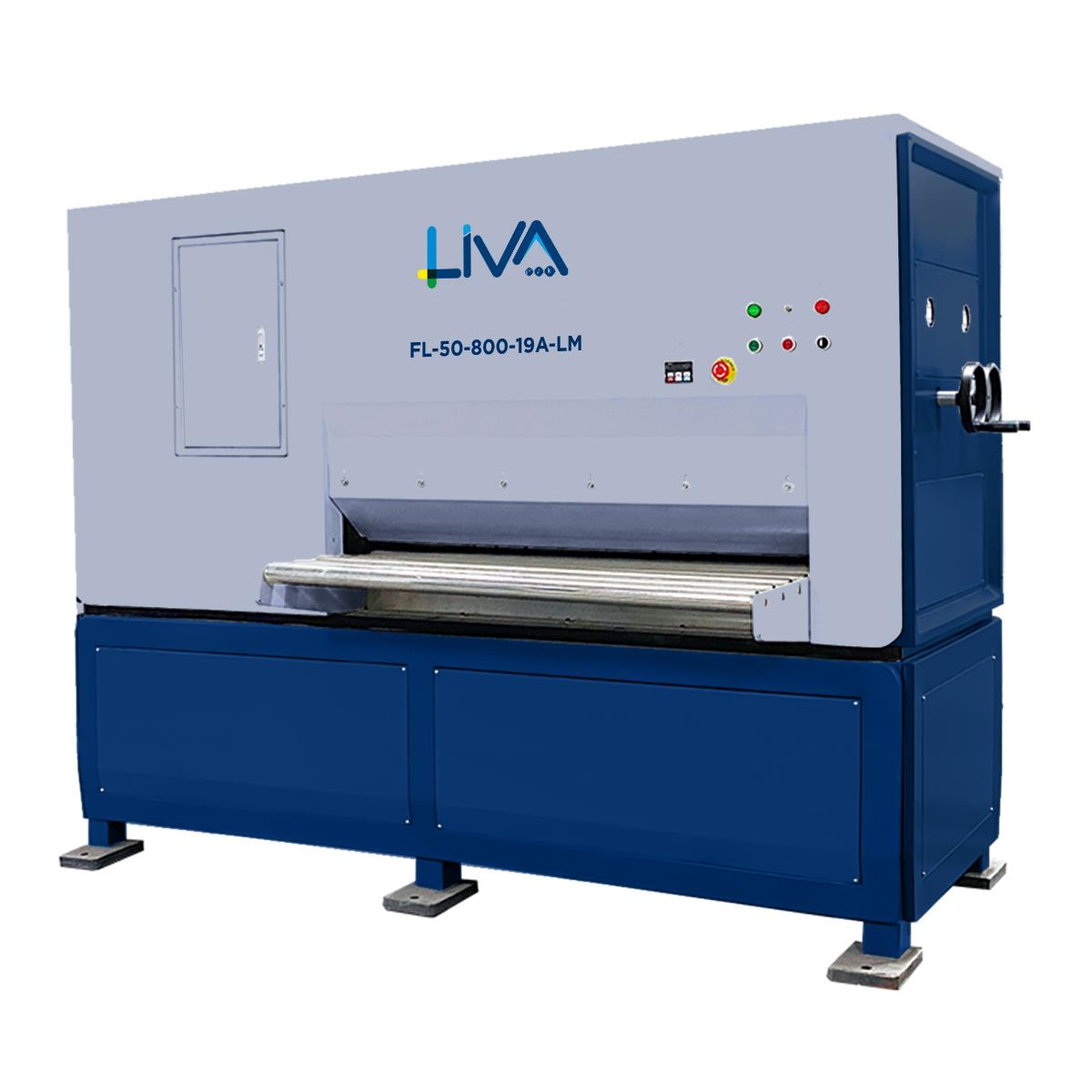

FL-50-800-19A-LM Four Layers Leveling Machines (FL-50-800-19A-LM)

This series of levelers are not as good as high-end levelers in terms of performance and automation, but their simple design, easy operation and maintenance make them an ideal choice for many small processing companies and low-cost production lines. It aims to use the "Bauschinger effect" of the material to repeatedly bend the plate to eliminate the internal stress of the material, level the flatness of the material, and achieve the flatness accuracy required by the process! Compared with highly automated straightening machines, this leveling machine may require more manual operations, such as manually adjusting the roll gap. It is more suitable for small batch production or low-frequency processing needs. The cost is relatively low, and it is suitable for those with limited budgets. Or used in small processing sites that do not require high straightening accuracy.

Small footprint: Compact design, smaller size, maximizes space utilization, suitable for working environments with limited space;

Energy saving and low carbon: Low energy consumption operation helps enterprises achieve green energy saving and significantly reduce power and operating costs;

Improve accuracy: The equipment cost is low and suitable for occasions with limited budget or low leveling accuracy requirements;

Cost-effectiveness: It can improve the flatness of materials, reduce waste caused by material defects, and improve material utilization;

Technological innovation: Optimize the leveling process and adopt advanced repeated bending technology to save materials and labor and improve production efficiency and economic benefits;

Easy maintenance: The structure of the equipment is relatively simple, maintenance and repair are usually easier, and maintenance costs are low;

Return on investment: Low-cost investment, rapid return on investment, and low cost to meet general production needs;

Applicability: More suitable for single product leveling, precise operation, simple and efficient.

• Roller quick cleaning device
• Inlet and outflow assembly line
• Loading and unloading manipulator
• Automatic stacking lifting platform
• Loading and unloading robot
• Automatic detection platform

Width	0-800mm
Roll diameter	50
Rated thickness	0.8-3.5mm
Maximum thickness	6.0mm
Number of rolls	19
Shortest part	90
Leveling speed	0-10m/min
