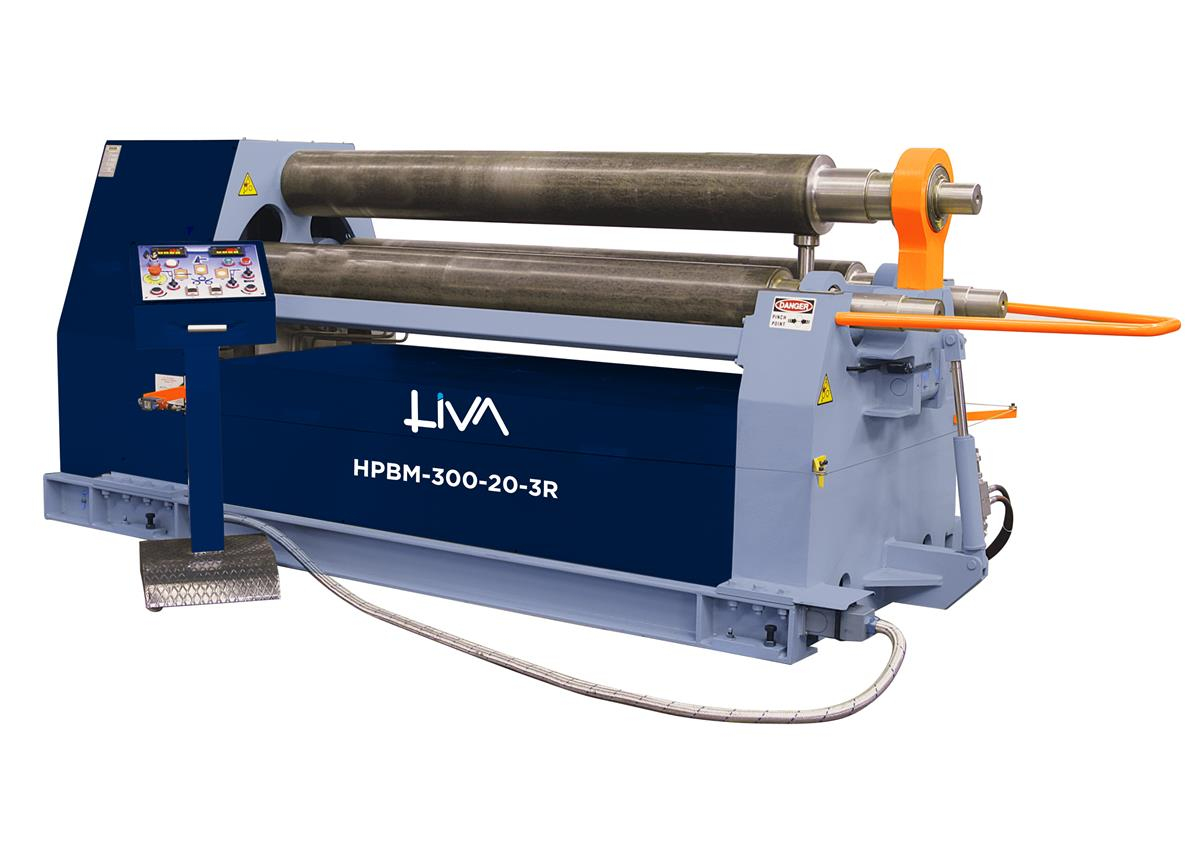

HPBM-300-20-3R 3Rolls Hydraulic Plate Bending Machine

Brand : Liva

Stock Code (HPBM-300-20-3R)

Est. Delivery Time45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms% 50 O.C, % 50 B.S.

Made In

Min. Order Qty.1 Pcs.

Warranty1 Year

Delivery TermsEx-Works - Turkiye

Stock Amount : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Item is out of stock.

Price : 46,447.72 $

Get Information with WhatsApp

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Very suitable for light and medium plates, aluminium or stainless steel bending
Ferrules in full circle or varying radiuses can be done easily
Lateral rolls move with hydraulic pistons in orbital way
Overload protection
3 rolls powered by single planetary gearbox and gear system
Hydraulic Drop-End for easy removal of finished ferrule
Easy operation with mobile control panel
Two digital readouts for easy roll positioning of bottom rolls
Welded steel frames
SAE 1050 (CK 45-50) forged or hot rolled, induction hardened and polished steel rolls
Conical bending device with ball bearing
Hydraulic balancing system for parellel movement of the rolls
Extended roll shafts for profile and pipe bending operation

Overhead crane for large diameters
Hydraulic lateral side supports for large diameters
Ground rolls for special jobs
Profile bending rolls set
Infinitively variable speed adjustment
Electronic balancing system for parallel movement of the rolls

General Technical Specifications

Plate Bending Roll Type	3	pcs.
Useful Length	2050	mm
Central Rolls Diameter (Ø)	300	mm
Bottom Roll Diameter (Ø)	300	mm
Side Rolls Diameter (Ø)	280	mm

Bending Capacity Specifications and Power

Pre-bending thickness (Top Roll x 1,5)	16	mm
Min. Bending Diameter with Pre-bend (Top Roll x 1,5)	450	mm

Pre-bending thickness (Top Roll x 5)	20	mm
Min. Bending Diameter with Pre-bend (Top Roll x 5)	1500	mm

Bending thickness without pre-bend (Top Roll x 1,5)	20	mm
Min. Bending Diameter without Pre-bend (Top Roll x 1,5)	450	mm

Bending thickness without pre-bend (Top Roll x 5)	22	mm
Min. Bending Diameter without Pre-bend (Top Roll x 5)	1500	mm

Working Speed	5	m/min.
Motor Power	11	Kw


Machine Dimensions

Length	4100	mm
Width	1500	mm
Height	1550	mm
Weight	4.570	kg

• All technical speciﬁcations are subject to change without notice.
• Plate bending capacities are given for 260 N/mm2 plate yielding strength.
