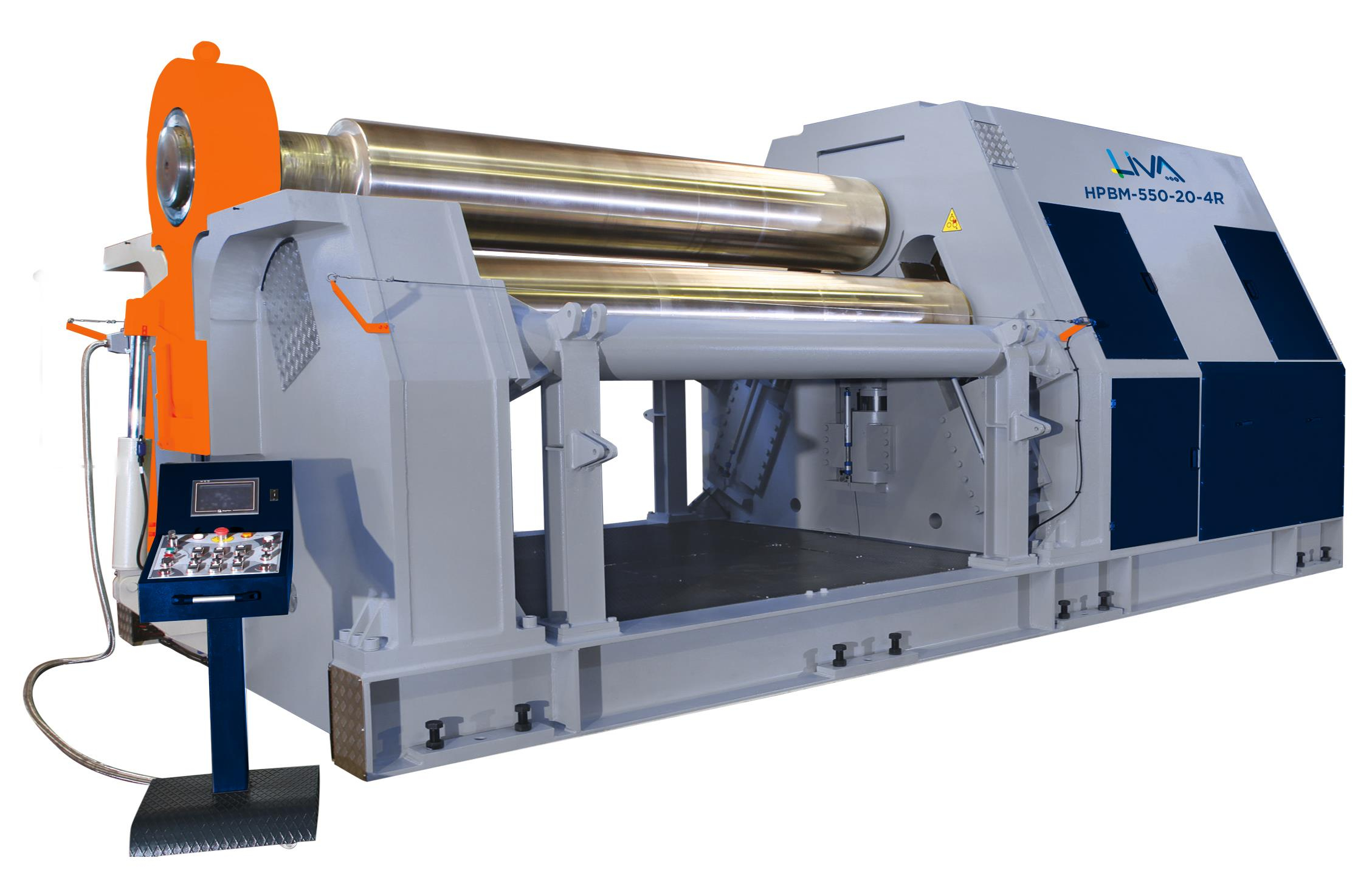

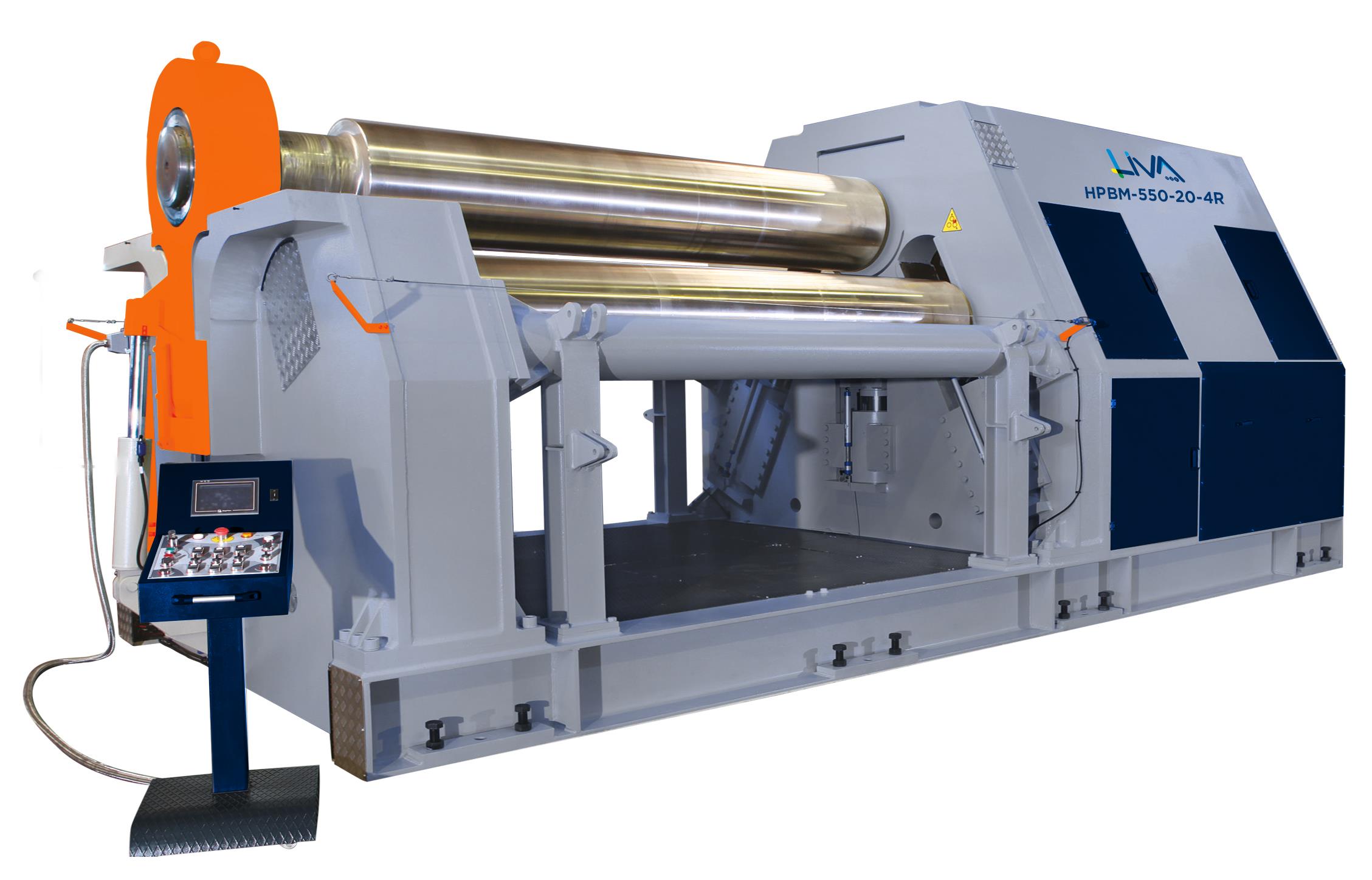

HPBM-550-20-4R 4Rolls Hydraulic Plate Bending Machine

Brand : Liva

Stock Code ( HPBM-550-20-4R)

Est. Delivery Time45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms% 50 O.C, % 50 B.S.

Made In

Min. Order Qty.1 Pcs.

Warranty1 Year

Delivery TermsEx-Works - Turkiye

Stock Amount : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Price : 0.00 $

Item is out of stock.

Get Information with WhatsApp

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Very suitable for medium and heavy plates or stainless steel bending
Ferrules in full circle, elliptical or varying radiuses can be done easily
Pinch roll and lateral rolls move pyramidal linear with hydraulic pistons
Overload Protection
Top Roll and Lateral Rolls are powered by hydromotor and planetary gearbox( 3 roll driven system )
Three digital readouts for easy roll positioning
Hydraulic tiltable Drop-End for easy removal of finished ferrule
Easy operation with mobile control panel
Welded steel frames
SAE 1050 (CK 45-50) forged or hot rolled, induction hardened and polished steel rolls
Conical bending device
Central lubrication system
Hydraulic balancing system (Ø280-320-350-380-400-460
Electronic balancing system (Ø500-550-580-620-680)
Automatical central lubrication system (Ø500-550-580-620 -680)
Double speed working system
Linear guide system. Pistons use all power for bending material.

Automation with NC and CNC control
Overhead crane for large diameters
Hydraulic lateral side supports for large diameters
Hydraulic plate ejector
Ground rolls for special jobs
Infinitively variable speed system
Electronical balancing system for parellel movement of the rolls (Ø280-320-350-380- 400-460)
Optional Accumulator System for rotating the welded parts

General Technical Specifications

Plate Bending Roll Type	4	pcs.
Useful Length	2050	mm
Central Rolls Diameter (Ø)	550	mm
Side Rolls Diameter (Ø)	450	mm

Bending Capacity Specifications and Power

Pre-bending thickness (Top Roll x 1,5)	45	mm
Min. Bending Diameter with Pre-bend (Top Roll x 1,5)	825	mm

Pre-bending thickness (Top Roll x 5)	50	mm
Min. Bending Diameter with Pre-bend (Top Roll x 5)	2750	mm

Bending thickness without pre-bend (Top Roll x 1,5)	50	mm
Min. Bending Diameter without Pre-bend (Top Roll x 1,5)	825	mm

Bending thickness without pre-bend (Top Roll x 5)	60	mm
Min. Bending Diameter without Pre-bend (Top Roll x 5)	2750	mm

Working Speed	1,5 -6	m/min.
Motor Power	66	Kw


Machine Dimensions

Length	5700	mm
Width	2900	mm
Height	2950	mm
Weight	40000	kg

• All technical speciﬁcations are subject to change without notice.
• Plate bending capacities are given for 260 N/mm2 plate yielding strength.
