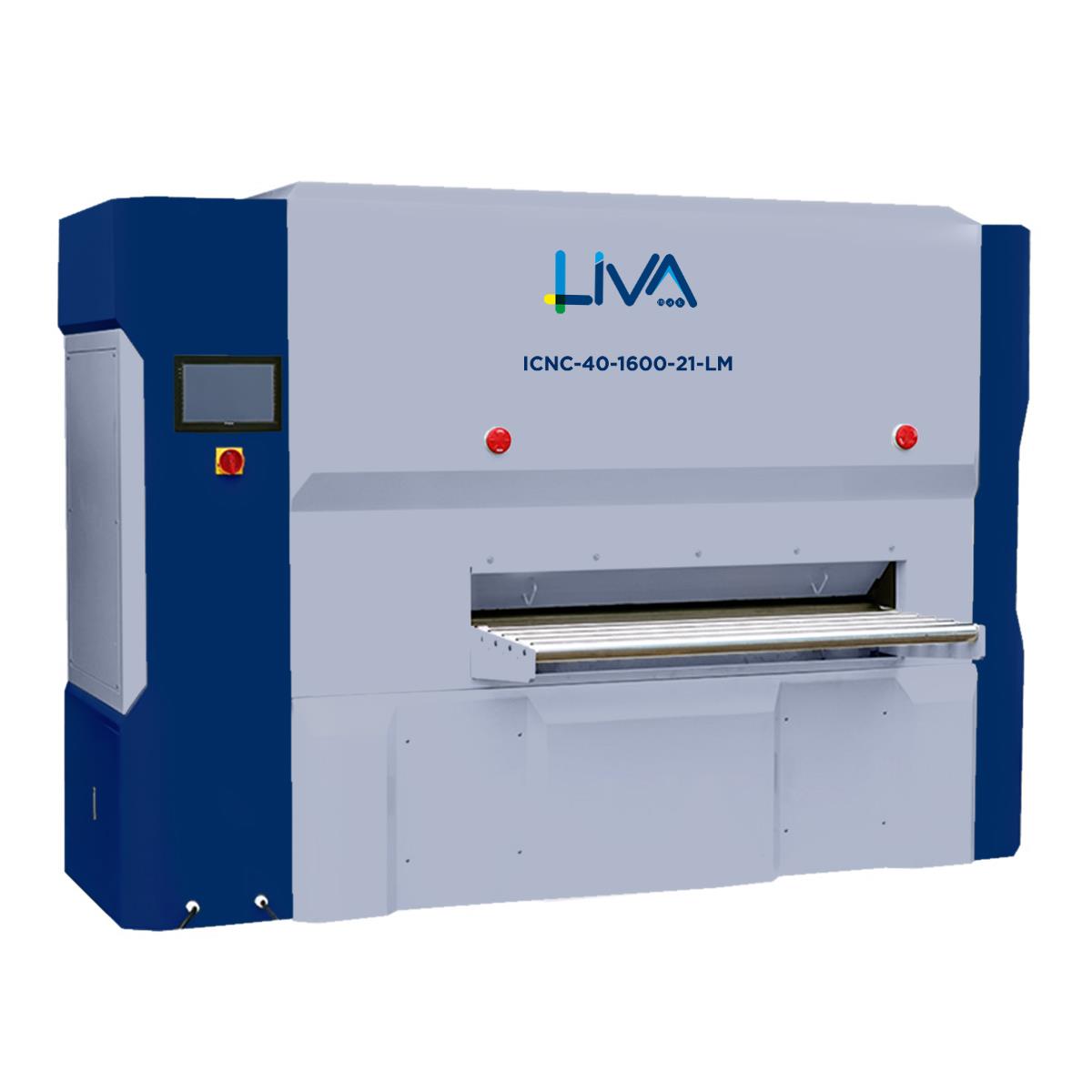

ICNC-40-1600-21-LM Intelligent Cnc Leveling Machines (ICNC-40-1600-21-LM)

Compared with other ordinary leveling methods, the series of control systems have the functions of storing, calling, and editing process and equipment parameters, and have the function of identifying and warning of misoperations. The 10-inch high-precision touch screen displays. When in use, on the operating platform, the inlet and outlet reduction can be set according to parameters such as plate thickness, plate width, material strength, or existing parameters in the database, so as to realize the work roll entry and exit clearance, etc. Electric adjustment, and can be adjusted and corrected manually. Compared with traditional manual leveling methods, CNC leveling machines greatly improve production efficiency. Suitable for sheet metal processing that requires higher flatness and straightness.

Benchmark performance: The fastest leveling speed is 10m/min; the maximum thickness is 0.03-30mm;

High cost performance: High-quality performance, super cost-effective, maximized return on investment value provide long-lasting stability;

Precision craftsmanship: The support structure is fine and densely arranged to ensure leveling quality, reduce friction and lasting stability;

Intelligent operation: Intelligent CNC adjustment, automated operation, easy to operate, quick to get started, intelligent management, improved efficiency;

Energy saving and environmental protection: Using precision motor drive, energy consumption is reduced by 50%, cost reduction and efficiency increase, environmental protection and economy;

Safe and reliable: Comprehensive safety protection, early warning of misoperation, ensuring production safety;

Flexible customization: We can customize production according to customer needs to meet the processing needs of different industries and specifications, and provide customized solutions for customers;

Efficient collaboration: Supports collaborative work with other equipment and linkage with upstream and downstream equipment to achieve efficient and coordinated operation of the production line.

• Four and six-fold rollers and number of rollers
• Inlet and outflow assembly line
• Loading and unloading manipulator
• The support roller is adjusted by motor independently
• Loading and unloading robot
• Automatic detection platform

Width	0-1600mm
Roll diameter	40
Rated thickness	0.6-3.0mm
Maximum thickness	6.0mm
Number of rolls	21
Shortest part	70
Leveling speed	0-10m/min
