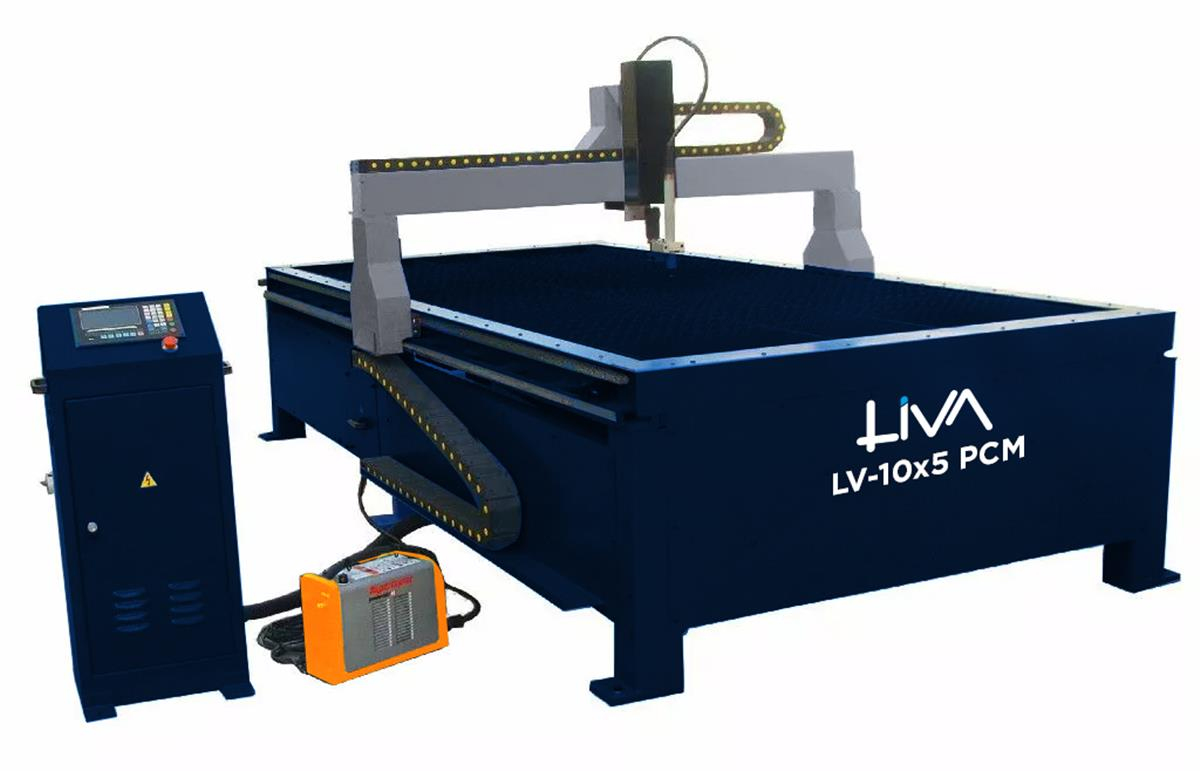

1.It could cut iron, aluminum, galvanized sheet, steel, Ti-gold and other conductive metals with high efficiency.
2.Fully welded main frame
3.Industrial cable track
4.High precision guide with servo motor on X and Y axis
5.Z axis with automatic height detection function
6.Fully welded main frame will support up to 1”(25.4mm) thick mild steel
7.Control console with programming
8.PC5'X10' with dust collector(Optional Accessory) to collect the draff, smoke and dust with high efficiency
Model
Cutting area (mm)
1524 x 3048
Cutting thickness (mm)
(45A)≤10
(65A)≤12
(85A)≤16
Cutting speed (mm/min)
0 - 6000
Z-Axis feeding height (mm)
150
Cutting precision (per 1000mm)
±1mm
Drive system
Gear
Power (kw)
6,9,12
Packing size (mm)
3600x2210x1500
8400x7800x1560
N.W./G.W.(kg)
1700/2020 100/150
Optional accessories:
Hypertherm Power
Dust Collector
