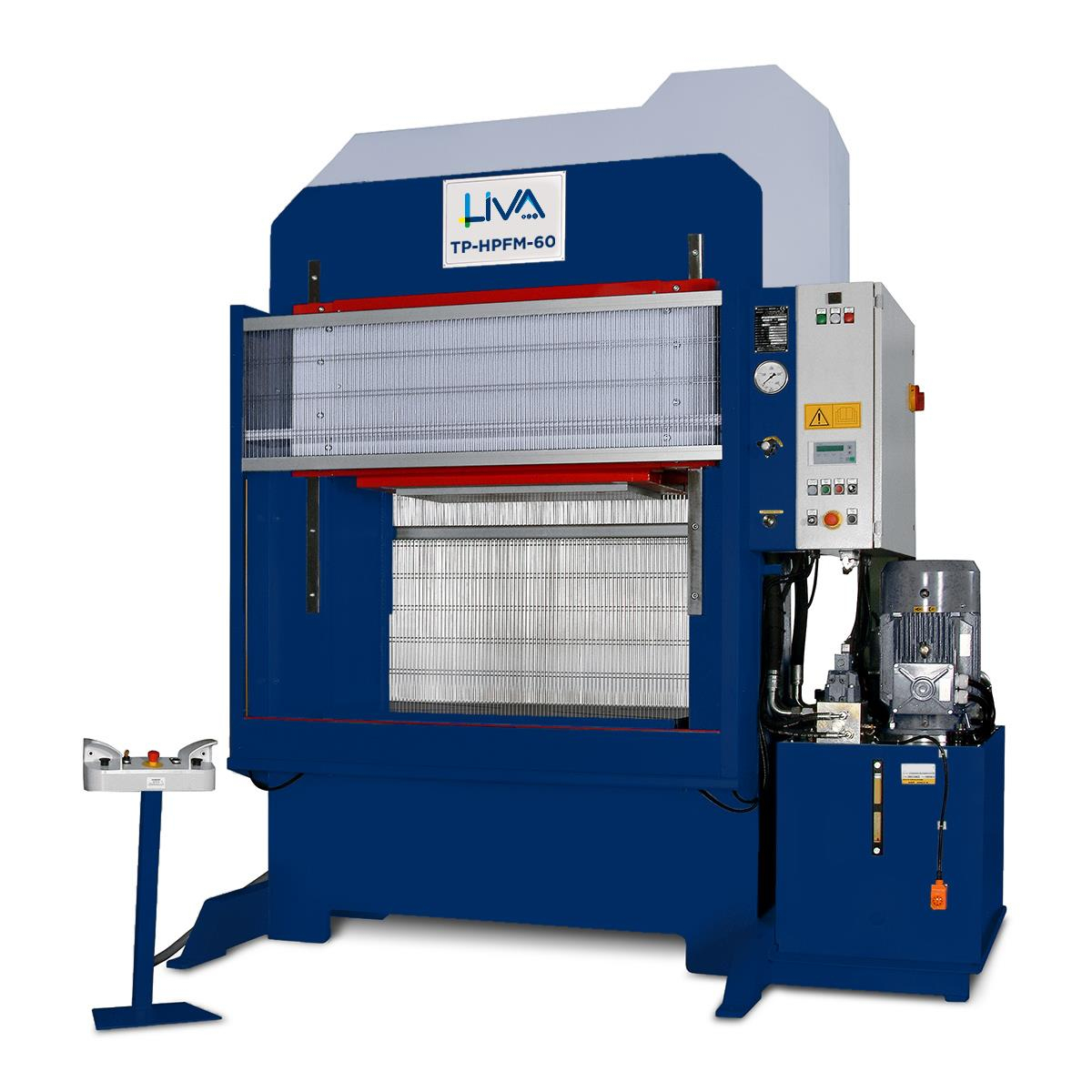

TP-HPFM-60 Fast Hydraulic Press For Cold Presswork

TP-HPFM-60 Fast Hydraulic Press For Cold Presswork

Brand : Liva
Stock Code (TP-HPFM-60)
Est. Delivery Time45-60 Days After O.C.
Shipment Place Turkiye
Payment Terms% 50 O.C, % 50 B.S.
Made In
Min. Order Qty.1 Pcs.
Warranty1 Year
Delivery TermsEx-Works - Turkiye
Stock Amount : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Item is out of stock.
Price : 50,483.57 $

Two-post hydraulic press for fast molding, suitable for the cold deformation of sheet metal with an approach speed of the hydraulic cylinder up to 125 mm/sec.

The MST hydraulic press is equipped with a mobile upper platen, which slides along 4 guides and a fixed lower platen, which is bolted to the monolithic structure of the press.
Both tables are equipped with T-slots which allow a quick and easy fixing of the moulds.
The stroke of the hydraulic cylinder is 500mm, while the gap between the two work surfaces is 600mm.

The MST electro-hydraulic press is equipped with a Rexroth hydraulic power unit with monitored solenoid valves.

Other standard equipment is as follows:

– Siemens CPU for quota setting
– Cylinder adjustment with limit switches
– Automatic movement controls using double buttons
– Air/oil heat exchanger
– Pressure switch
– Rear protective metal mesh.
– CE Certificate of Conformity – “Annex IV”

Listed below are the optional accessories of the two-post hydraulic press for fast moulding, model MST:

– Front photoelectric barriers
– Digital control with Siemens display
– Hydraulic cushion from 20 to 80 tons
– Digital control of the blank holder cushion
– Timer
– Piece counter
– Prismatic guides
– Proportional valve for speed control
– Proportional valve for pressure control
– Separate management of approach speed and working speed
– Variable displacement piston pump
– Air/oil exchanger with independent recirculation
