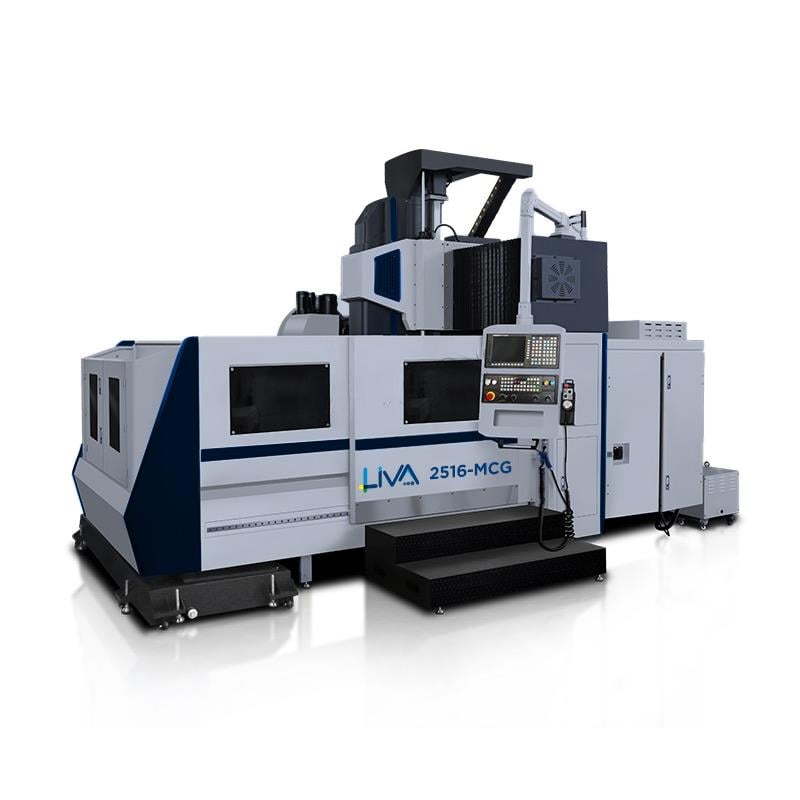

2516-MCG Gantry Machining Center
2516-MCG Gantry Machining Center

2516-MCG Gantry Machining Center

Marka : Liva
Stok Kodu (2516-MCG)
Est. Delivery Time45-60 Days After O.C.
Shipment Place Turkiye
Payment Terms% 50 O.C, % 50 B.S.
Made In
Min. Order Qty.1 Pcs.
Warranty1 Year
Delivery TermsEx-Works - Turkiye
Stok Miktarı : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Ürün stoklarımızda kalmamıştır.
Fiyat : 103,523.61 $
Table size(W*L) mm 1400x2600
X axis travel mm 2500
Y axis travel mm 1700
Z axis travel mm 800
Gantry width/passing height mm W:1700 / H:1080
Table load t 5
Distance between spindle nose and table surface mm 200-1000
T slot(number-width*pitch) - 7-22*200
Spindle taper - BT50/190
Spindle speed r/min 6000
Rapid traverse speed m/min 15
Cutting feed speed m/min 10
Main motor power kw 15/18.5
Tool magazine   Arm 24
Positioning accuracy mm X/Y ±0.0075      Z ±0.015
Repeat positioning accuracy mm ±0.005
Overall dimension mm 8200x4500x4300
Machine weight(about) t 20.5
