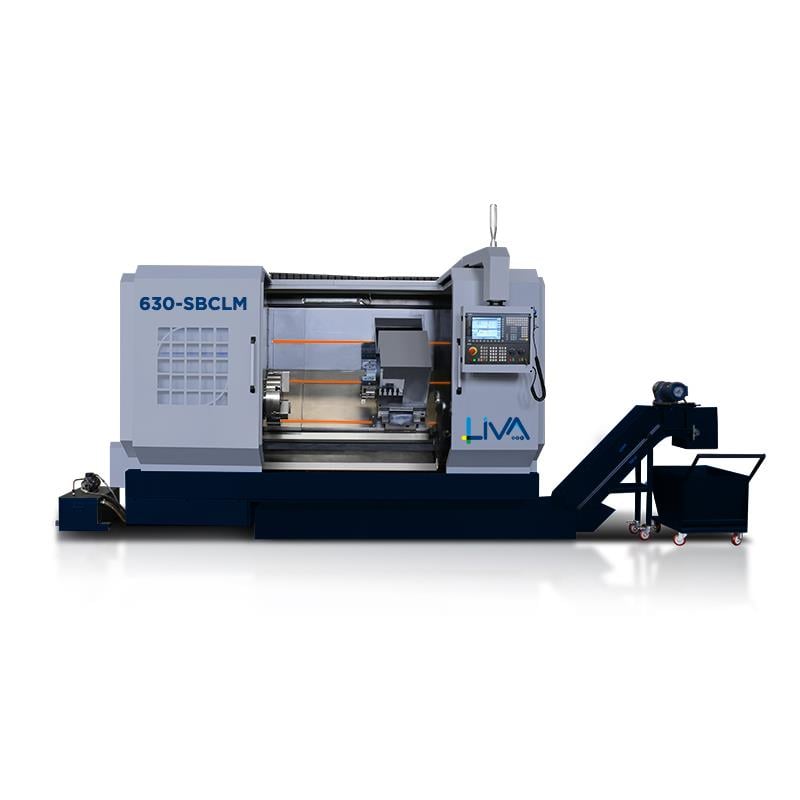

630-SBCLM Slant Bed -CNC Lathe Machine
630-SBCLM Slant Bed -CNC Lathe Machine

630-SBCLM Slant Bed -CNC Lathe Machine

Brand : Liva
Stock Code (630-SBCLM)
Est. Delivery Time45-60 Days After O.C.
Shipment Place Turkiye
Payment Terms% 50 O.C, % 50 B.S.
Made In
Min. Order Qty.1 Pcs.
Warranty1 Year
Delivery TermsEx-Works - Turkiye
Stock Amount : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Ürün stoklarımızda kalmamıştır.
Fiyat : 72,630.35 $
Swing over bed mm 630
Swing over cross slide mm 440
Distance between centers mm 1000/1500/2000/3000
Slant bed layout angle ° 45
Spindle bore mm φ105
Spindle speed steps - Stepless
Spindle speed range rpm 150-1000
Hydraulic chuck in 15
Main spindle motor kW 15
Turret/tool post - Hydraulic turret 8 position
Tool shank size mm 32 x 32
Boring tool holder size mm φ50
X axis travel mm 330
Z axis travel mm 1000/1500/2000/3000
Tailstock quill diameter mm φ130
Tailstock quill taper - MT5
Tailstock quill travel mm 150
Coolant pump motor kW 0.37
Width x Height mm 2050 x 2300
Length mm 4850/5350/5850/6850
Machine weight T 7.0/7.5/8.0/9.0
