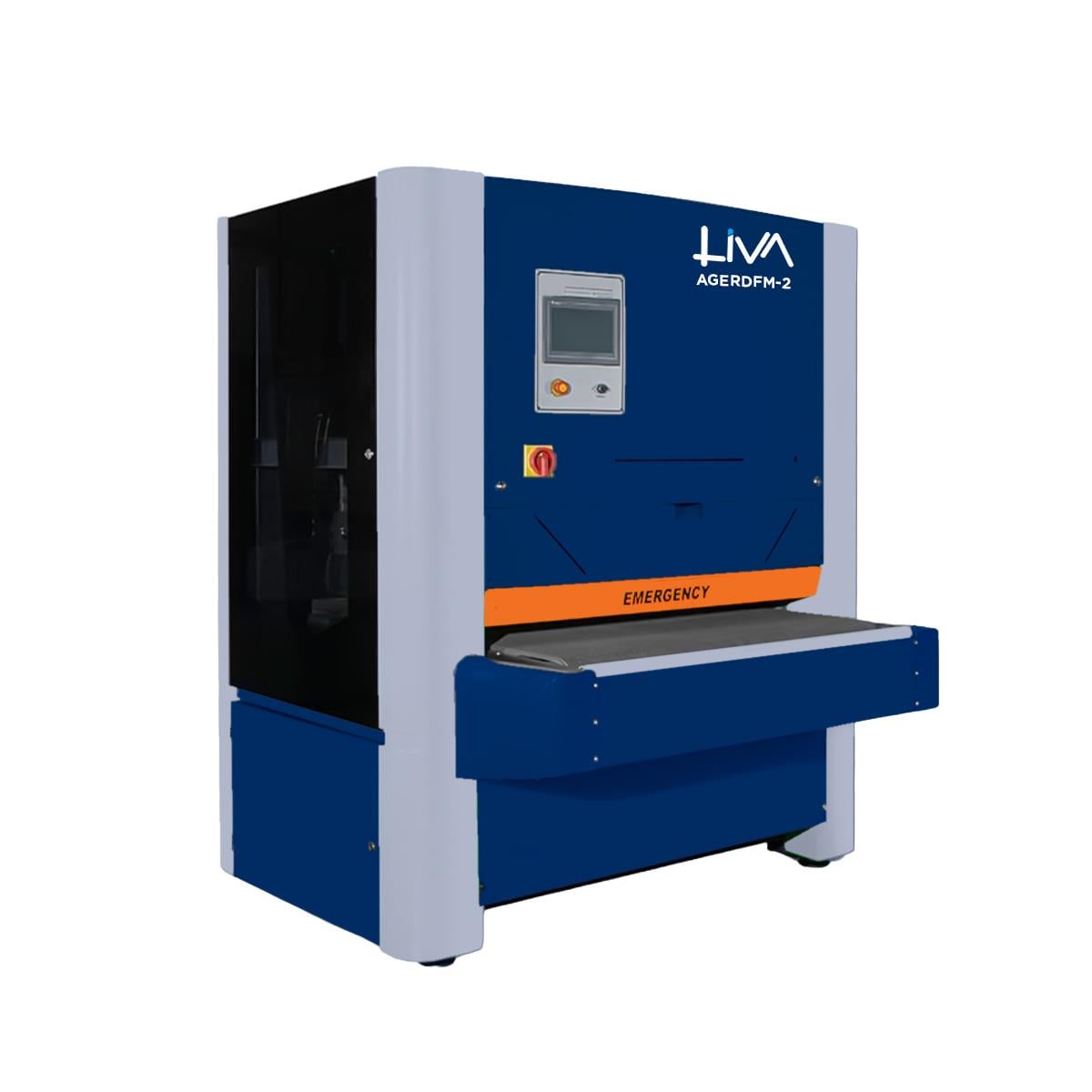

AGERDFM-2 Automatic Grinding, Edge Rounding, Deburring and Finishing Machine-2 Units (AGERDFM-2)

Brand : Liva

Fiyat : 63,724.00 $

Stock Amount : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Artır Azalt

Est. Delivery Time45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms% 50 O.C, % 50 B.S.

Made In

Min. Order Qty.1 Pcs.

Warranty1 Year

Delivery TermsEx-Works - Turkiye

Standard equipment

Unit 1
Unit type	Roller Unit
Ünite features	Ø180 mm, Rubber –coated, 50-55 shore Roller Pneumatic surface pressure adjustment (grit set)
Abrasive belt dimension mm	2620 * 1350
Abrasive belt cutting speed m/s	3 to 15 INVERTER controlled variable Speed
Motor power kW	15
Motor brake	Include
Standard discs details	1 piece, 2620x1350mm, P120 Zirconium, Abrasive Belt

Unit 2
Unit type	Orbital Disc Unit
Unit features	Extractable and oscillating orbital discs Diameter:115mm, Remark: Bore 25mm (Clockwise) It can be adjusted according to different connection type on request.
Number of discs adet	15
Discs diameter mm	115
Tool changing device	By screw
Stroke adjustment up and down for disc pressure	Motorized control by Touch Panel
Oscillation details	Motorized, stroke 30 mm
Discs rotating speed rpm	250 to 1.250 INVERTER controlled variable Speed
Motor power kW	7,5
Standard discs details	15 pieces, Ø115mm, HERO discs P80

Model		AGERDFM-1350x120-2
Machine working width	mm	0 – 1350
Material handling thickness	mm	*2 – 120
Min. size of the piece on the belt	mm	150x100
Max. specific weight of the part	kg/ m2	350
Material thickness control		PLC Touch Panel
Conveyor belt features		**Fix table, Feed speed adjustable 1 to 12m/min , Abrasion resistant conveyor belt
Machine working pressure (bar)		6
Machine. Weight (kg)		3200
Machine all operations		PLC Touch Panel control
Touch Panel and PLC		Delta Touch Screen Display 7", color, resistive Graphic facilities & display; Synchronized clock integrated software. Connection USB, RS232, Ethernet 10/100/1000 Automatic motors sequence starting Display report and reset of alarms (self diagnostic) with memory records Front protection: IP65
Electric panel		Siemens/Schneider
Motor driver		Mitsubishi
Bearing brand		Nachi/NSK/SKF
Cover safety switches		Include
Motor protection unit		Include

** Fix table: The thickness adjustment according to the material to be processed in the machine is made by

moving the body system up / down. It’s suitable for lines.
