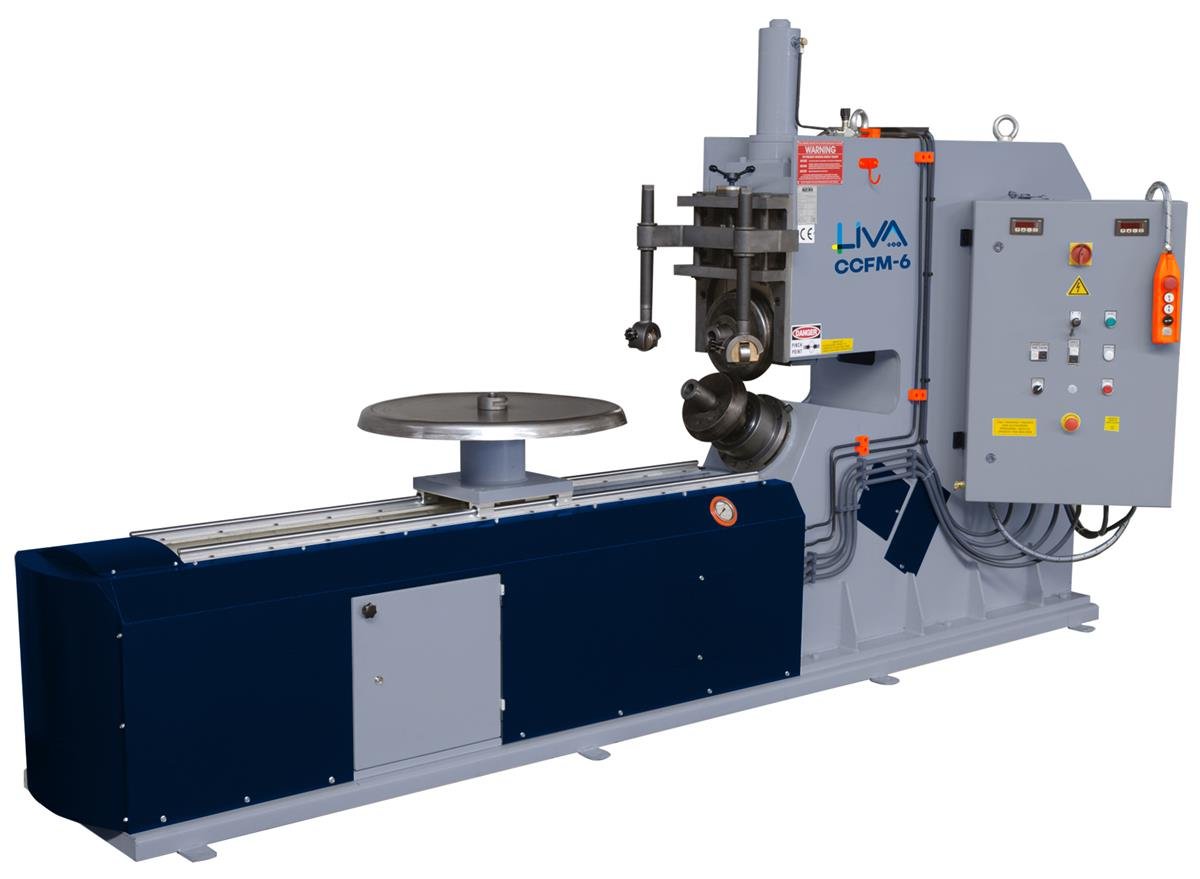

* This machine is designed to cut and flange plate sheet up to 6 mm tickness for the production of dished bottoms.
* Head with double driven shaft to accomodate flanging rolls or cutting blades for respectively flanging or dish cutting operation.
* Top shaft laterally adjustable to determine the best cutting position.
* Bottom shaft with adjustable position to better suite plate thickness during flanging and cutting operation.
* Flanging and cutting operation, manually controlled through push buttons from a hand key- board.
* Bottom holder carriage motorized traslation with lead-nut and trapezoidal warm screw system.
* Bottom holder carriage vertical adjustment with hydraulic cylinder, for crowned bottom flanging
* Machine special designed to flange with flanging radius up to 40 mm.
* Adjustable lateral guiding rolls to facilitate flanging operation.
* (1) one set of flanging rolls and (1) one set of cutting blades, supplied with the machine as standard equipment.
* Main control operations are conveniently located on a portable hand key-board; all other functions are placed on the main control panel.
electric components: telemecanique or siemens or similar quality brand.
* Frame is of heavy, welded steel construction, thermally stress relieved.
* Rolls are of high tensile carbon steel forgings, heat treated and submitted to non-destructive structure controls. the rolls are also
with hardened surface.
* Hydraulic equipment consist of: motor pump group, solenoid valves, max pressure valves, oil level and all the necessary equipment for the
correct m/c operating. hydraulic components: rexroth - bosch - vickers or similar quality brand.
* Safety sytem consist of devices placed on both sides of the machine and an emergency push button placed on the hand key-board that, when
operated, stop immediately the entire machine functions.
