Hydraulic Profile Sheet Bending Machine

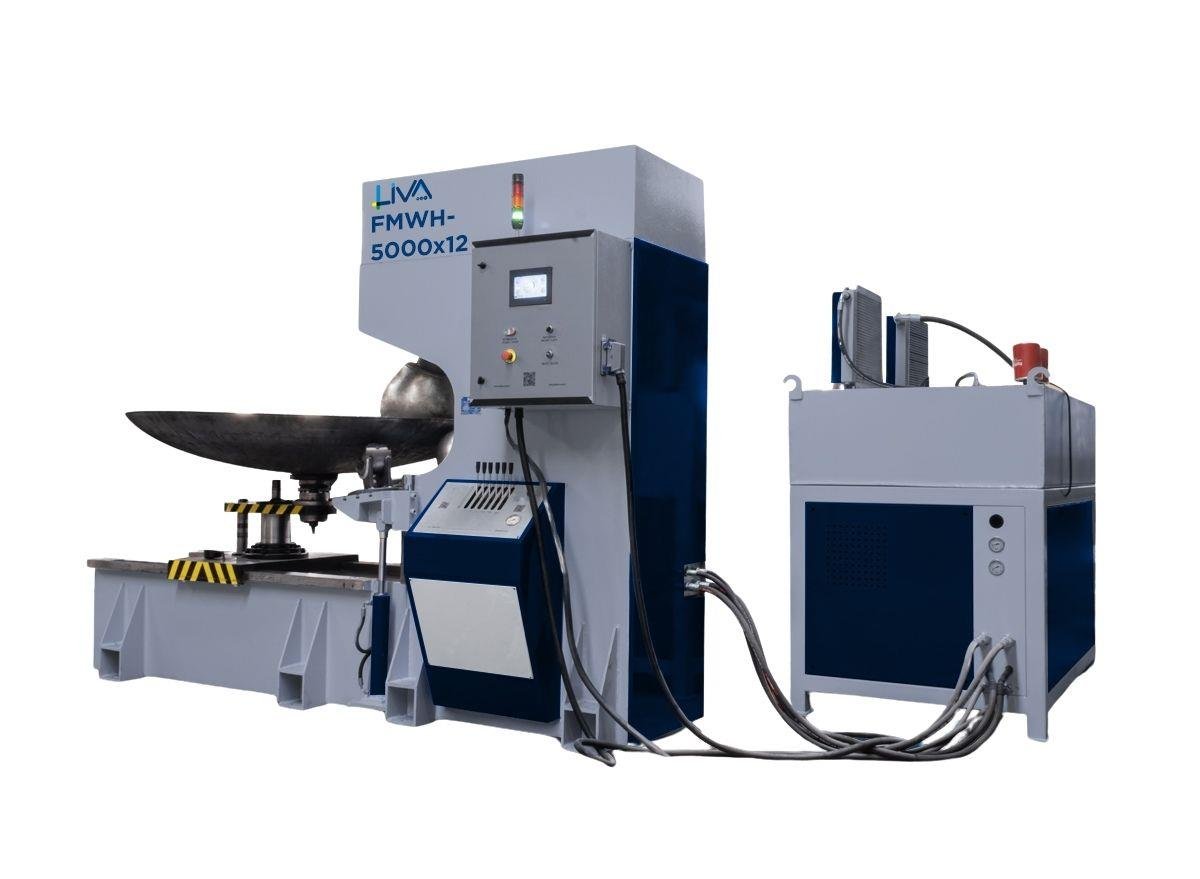

Dishing and Flanging Bending Machine is the perfect solution for bending the end parts of curved or non-curved lids used in the industry to close the bottoms and ceilings of pressurised or non-pressurised, thin or thick walled, cylindrical metal containers. LIVA Machine we facilitate your production processes with our high quality and durable machines. Perforated Camber Bending and Flanging Machine offers precise and reliable results, increasing your production efficiency.
Technical Specifications and Advantages
The Bombe Edge Bending Machine starts the bending process by placing the edge of the bombe head neatly between two moulds, one fixed to the upper reducer and the other idle at the bottom. When the upper spindle runs, the spinning process starts and the hydraulic cylinder number 3 is moved upwards. The edges of the curved ends are bent by the linear movement of hydraulic cylinders 1 and 2. This process is repeated two or more times until the expected values are obtained according to the thickness, depth and diameter dimensions. High performance curved edge bending process is realised.
Full Circular Bending and Flanging
Our machine ensures maximum efficiency in the process of forming the edge of the circular part completely circular. It offers high rigidity and stability during flanging. The forming roller, made of high resistance steel and induction hardened, is designed to suit the radius of the edge to be obtained.
Smooth and Efficient Flange Performance
Perforated Dishing Flanging Machine provides smooth flange performance, while the articulated roll shape of the flange roll saves material. The machine provides the best and accurate forming of many metal sheets from very thin sheets to very thick sheets. It provides a simple operation and maximum flexibility in the forming of metal sheets and shows efficient working performance.
Manual and Automatic Roll Process
Bombe Edge Bending Machine can operate in manual or automatic mode. Thanks to its hydraulic system, height and direction adjustment can be made, thus adapting to all kinds of production needs.
Support and Adjustment Systems
Material Centring and Fixing
Process precision is increased with material centring screw and material fixing bolt. Bottom flange roller and hydraulic moving flange bottom support system provide production at the required radius.
High Torque Top Flange Roll
The high-torque top flange roll increases the rotation speed, allowing operations to be completed in a short time, thus increasing production efficiency. It provides precise and efficient processing of metal sheets such as CNC metal plastering, flanging and bowl head forming. It offers flexibility in the production of parts of various shapes and sizes while spinning the metal sheet. Bevelled edge bending machines perform precise bending of metal parts.
