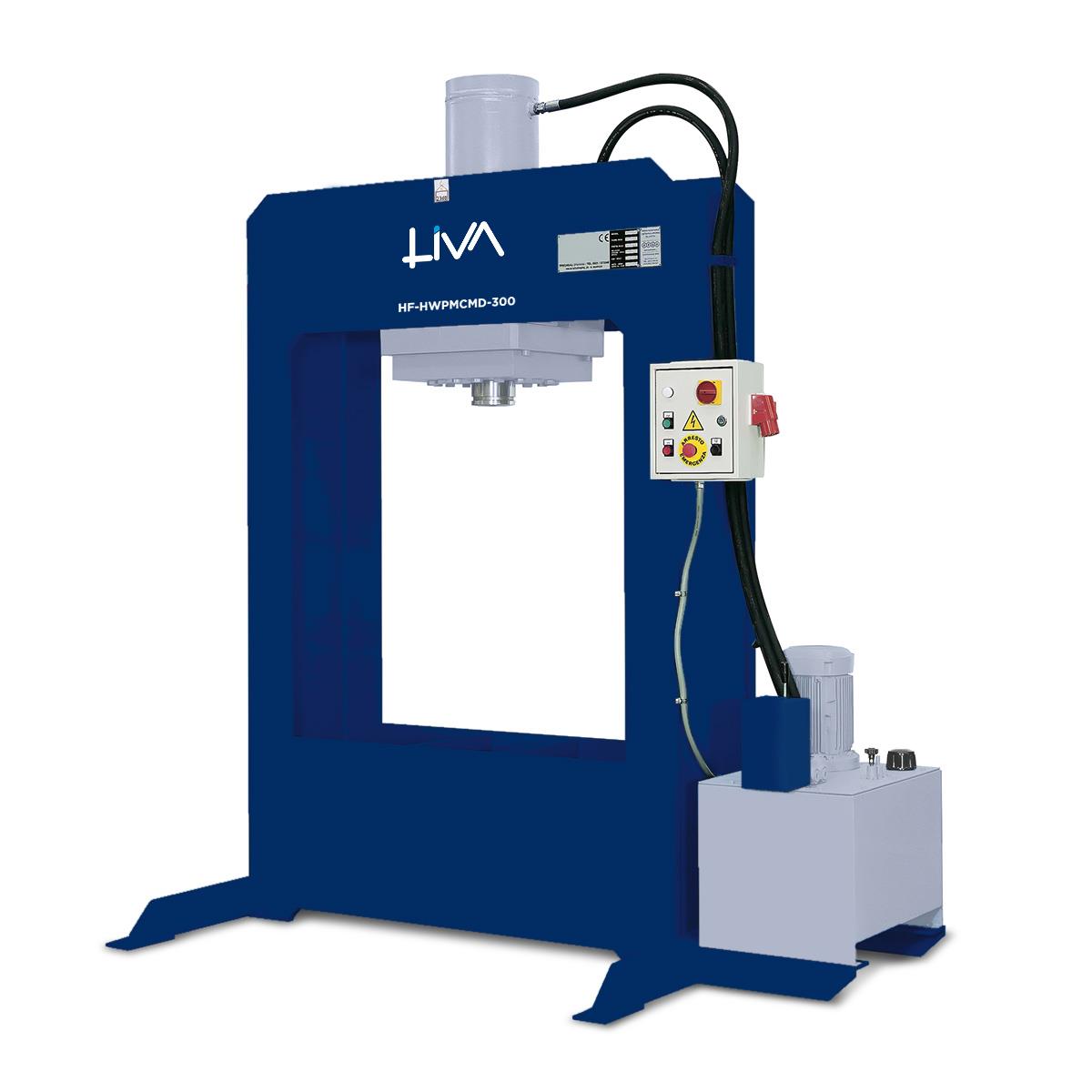

HF-HWPMCMD-300 Standard Hydraulic Press
HF-HWPMCMD-300 Standard Hydraulic Press

HF-HWPMCMD-300 Standard Hydraulic Press

Marka : Liva
Stok Kodu (HF-HWPMCMD-300)
Est. Delivery Time45-60 Days After O.C.
Shipment Place Turkiye
Payment Terms% 50 O.C, % 50 B.S.
Made In
Min. Order Qty.1 Pcs.
Warranty1 Year
Delivery TermsEx-Works - Turkiye
Stok Miktarı : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Ürün stoklarımızda kalmamıştır.
Fiyat : 44,465.19 $

Hydraulic workshop press with monolithic structure and with the possibility of electric transversal movement of the cylinder.

The HWPMC hydraulic press is suitable for various jobs within a mechanical workshop and is the ideal press for dismantling solid forklift tires. It can also be used to straighten sheet metal, to mount and dismount bearings, bolts, washers, to carry out molding or deformation work on the material.

The frame of the double column press is made of fully welded milled steel and this, in addition to the fact that the structure of the press is monolithic, makes this model extremely solid and resistant to even the most severe mechanical stress. The HWPMC hydraulic press is therefore suitable for intensive use both in mechanical workshops and in the production cycles of industrial plants.

The large front opening allows you to easily place long or wide pieces.
The work surface of the HWPMC hydraulic workshop press is hollow and this allows the material to be processed at height. The work support surface is available as optional equipment.

The hydraulic cylinder has a stroke of 500mm and can be chosen fixed or mobile. In the latter case its lateral movement is regulated manually using a handwheel for models up to 100 tons, while from 150 tons it is supplied with hydraulic movement.

This hydraulic workshop press with monolithic structure is available in models from 40 tons up to 400 tons.

The operation of the double column electro-hydraulic press takes place with the simultaneous use of the lever and the button, as required by the CE safety regulations.
As optional accessories, limit switches can be mounted which automatically regulate the maximum ascent and descent point of the cylinder.

Other accessories are the pair of V-shaped prisms, the support platform and the cylinder anti-rotation system.
