General Specifications:

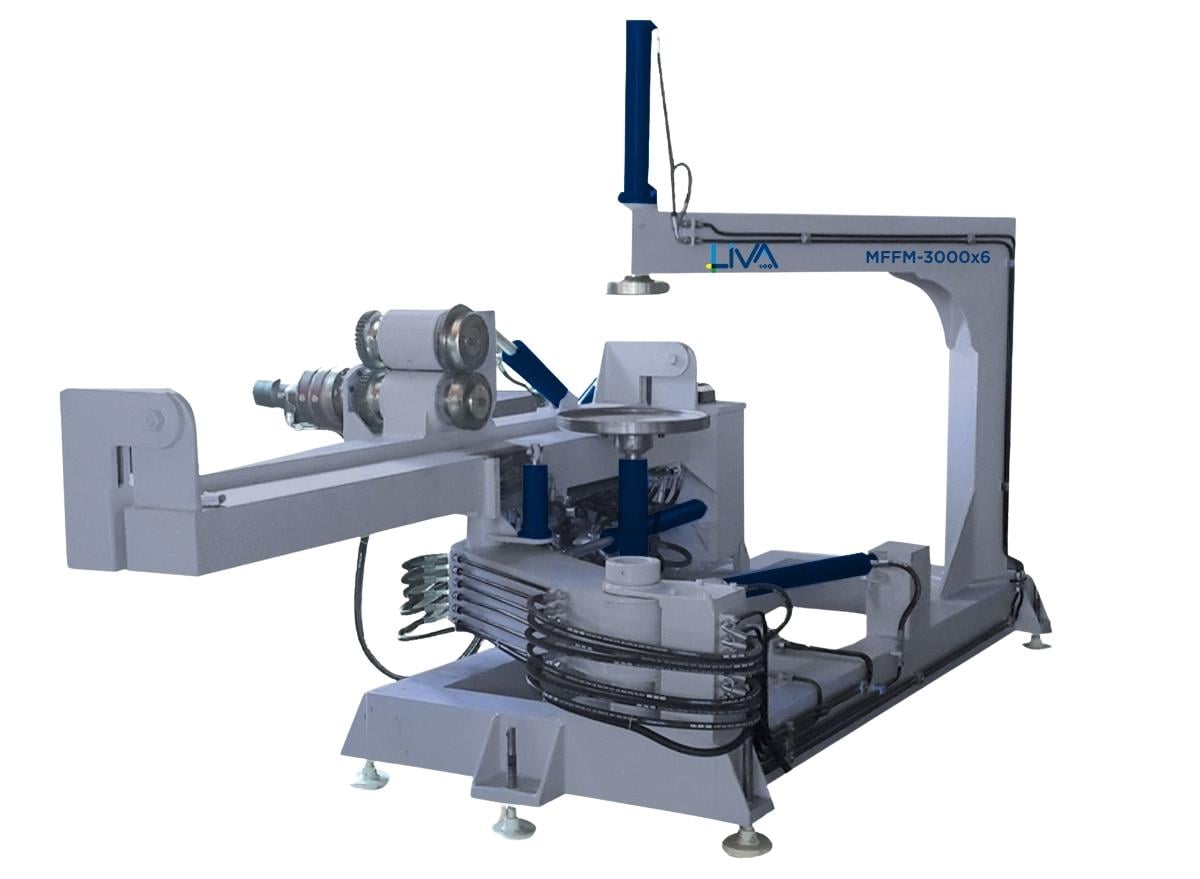

• They are the machines which are used for manufacturing dished end cover for cylinders.
• Hydraulic Equipments: Motor & pump group, valves, solenoid valve. Eaton(UK) parts are used.
• Electrical Equipments: Lovato(Italy).
• One mold for Multiple Flanging Machine.
• Emergency System: Emergency button.
• Built according to EC Safety Directives.
• Dimensions are approximate values.
Standard Equipments:
• Mold Multiform Flanging Machine :,R50
Optional Equipments:
• Extra Mold for Multiple Flanging Machine (each) : Price on request
The elliptic material that will be bended by press machine, is placed between hydraulic cylinders with number 1 and 2. Edge of the material that will be flanged, is placed between molds which are those one of them is fixed to cylinder number 3 and other one is stationary mold shown with number 4. The machine part which is shown with number 5, carried out bending process by hydraulic cylinder. Then, this process is made three or more times till expected values are obtained in accordance with thickness, depth and diameter measurements.
1. First of all, the elliptic material that bended by press machine, is placed between hydraulic cylinders with number 1 and
2. 2. After that, edge of the material that will be flanged, is placed between molds that one of them is fixed to cylinder number 3 and other one is stationary mold with number 4.
3. Hydaulic cylinder which is connected to part shown with number 5, is moved linear. Gearbox which is fixed the mold with number 4, is driven. And spinning process starts.
4. After first round finished, hydaulic cylinder which is connected to part with number 5, moved up some more. Gearbox is driven again and second round is begun.
5. Then, this process is made three or more times till expected values are obtained in accordance with thickness, depth and diameter measurements.
6. Bending process is carried out MANUALLY
Top shaft is driven by a hydraulic motor which is coupled to the planetary gearbox and spinning is carried out by gear system.
