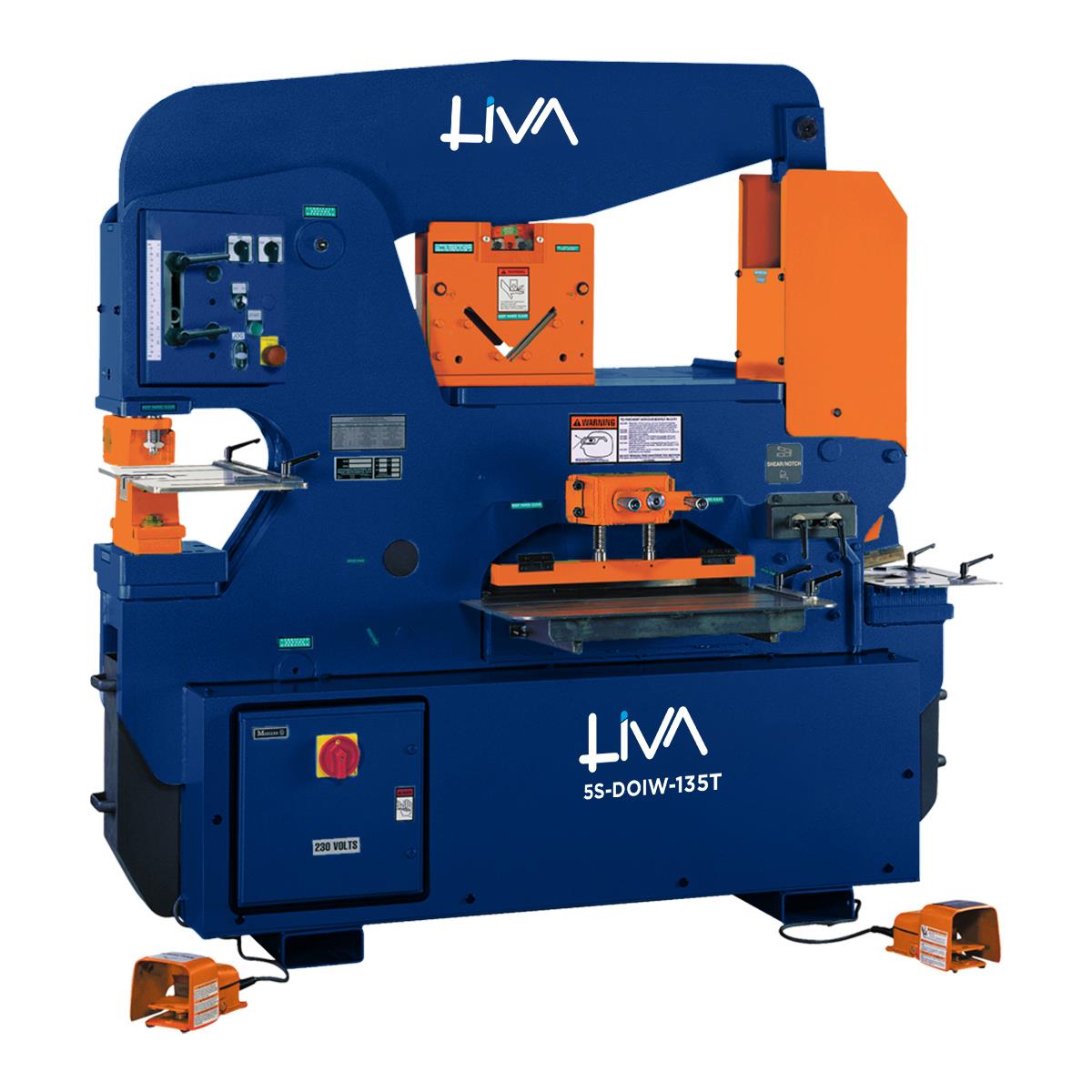

5S-DOIW-135T Гидравлические двухпоршневые машины для металлообработки (5S-DOIW-135T)

Бренд : Liva

Цена : 50,207.86 $

Количество запасов. : 0

Примечание: цены, указанные здесь, являются розничными ценами продаж. Специальные скидки могут применяться к ценам при оптовых закупках. Кроме того, скидки для дилеров могут быть другими.

Импортные пошлины, таможенные сборы и налоги на добавленную стоимость для продуктов, произведенных за пределами Турции. Они не включены в цену. Это относится к клиентам, которые будут покупать в Турции.

Цены, указанные здесь, не являются ценами на доставку «от двери до двери». Для покупателей каждой страны, которые будут покупать в своей собственной стране, они несут ответственность за таможенную пошлину и другие налоги, которым они подлежат в соответствии со своими коммерческими законами.

Заказ по телефону

Добавить в избранное

Добавить в список желаний

Сравнение.

Уведомить о снижении цены

Уведомить о поступлении

Artır Azalt

Расчетное время доставки45 дней после подтверждения заказа

Место отгрузки ТУРЦИИ

Условия оплаты% 50 T/T Для подтверждения заказа, % 50 T/T До отгрузки

Сделано в

Мин. кол-во заказа1 Pcs.

Гарантия1 год

Условия доставкиEx-Works - Турция

A dual-operator ironworker is often the best option when two simultaneous operations are required (e.g. punching and notching).

The dual operator 135-ton ironworker machine has a tandem hydraulic pump system designed to allow two operators to use the machine at the same time ensuring that both operations will have full hydraulic pressure and speed.

The 5S-DOIW-135T has a 135-ton capacity punch and a 12" throat depth, which can punch a 1-11-16" hole in 1" thick mild steel. The 5S-DOIW-135T is made in America with many standard features that include: 6" x 6" x 1/2" angle shear and a rectangular notcher that can notch 3" x 5-3/4" through 1/2" material. The 24" flat bar shear features a low rake angle and can shear up to 1" x 12" and 1/2" x 24" steel plate. This machine also accepts optional equipment such as press brakes, rod shear, tube shear, picket tool, as well as custom-built tooling. The versatility of Livamach ironworkers is unmatched as our machine's design allows for additional tooling to be quickly & easily swapped in and out of the tool table workstation so you can customize this machine to fit your needs!

This American-made ironworker is built tough and utilizes a hydraulic system with electric valves & remote foot pedals for ease of use, an adjustable electric stroke control with scale, and is backed by Livamach’s industry leading 3-Year Warranty and lifetime customer support!

Dual Operator, 5 Stations
Dual operator allows for two operators to work at the same time at full capacity
135 Ton punch station
Keyed punch ram for safety
Punch gauging table with fence and scale
Die holder complete with 2" die insert
Punch nut with wrench & stripper
Adjustable swing-away stripper
One round punch & die: max. diameter 1-1/4"
LED work lights now standard equipment!
Jog control
Two adjustable electric stroke controls with scale
Two electric remote foot pedals
Tandem Hydraulic Pump
Two valves
Angle shear
Rectangle notcher with table, scale and guides
Flat bar shear with sabre blade
Shear table with miter fence
Tool table work area
Slug receptacles
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA

Punching Capacity	135 ton 1-11/16" in 1"	122 mt 42 in 25 mm
Special Tooling	4" Max. Dia.	102 mm Max. Dia.
Throat Depth	12"	305 mm
Flat Bar Shear (Sabre Blade - Standard)	24" Length 1" x 12" 3/4" x 20" 1/2" x 24"	610 mm 25 x 305 mm 19 x 508 mm 12 x 610 mm
Angle Shear 90 degree	6" x 6" x 1/2"	152 x 152 x 12 mm
Angle Shear 45 degree w/Tool w/Bar Shear	3" x 3" x 3/8" 4" x 4" x 1/2"	76 x 76 x 10 mm 102 x 102 x 12 mm
Brake 12"	90 ton	81.6 mt
Brake 24"	70 ton	63.5 mt
Open End Brake	Max. 1/4" x 5" [Flat or Angle Iron]	6 x 127 mm
Pipe Notcher Schedule 40	3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher	3" x 5-3/4" x 1/2"	76 x 146 x 12 mm
90 degree V-Notcher	6" x 6" x 5/16" 3" x 3" x 1/2"	152 x 152 x 8 mm 76 x 76 x 12 mm
Notching in Leg of Channel	6" to 10"	152 to 254 mm
Channel Shear	2" to 6" adj.	51 to 152 mm adj.
Unistrut Shear	Samples Required
Rod Shear Round (max.) Square (max.)	9 Cavity - 1/4" to 1-1/4" 1 Cavity - 1/4" to 1"	6 to 32 mm 6 to 25 mm
Square Tube Shear	1/2" to 2" 12 gauge	12 to 51 mm 0.105" / 2.7 mm
Picket Tool	1/2", 3/4" & 1" 16 gauge	12, 19, 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)	2" wide x 3/8"	51 x 10 mm
Offset Die Holder	Max. 40 ton	Max. 36 mt
Strokes per minute in light material	39 spm [Punch Station]	1/4" stroke
Strokes per minute in heavy material	15 spm [Punch Station]	3/4" stroke
Hydraulics	3,500/3,500 psi	241/241 bar
Motor Standard	10 hp 208/230/460, 380/575v; 3 ph	7.46 kW
Motor Optional	10 hp 220v, 1 ph	7.46 kW
Dimensions	L: 83" W: 38-1/2" H: 76-1/2"	L: 211 cm W: 98 cm H: 194.5 cm
Shipping Weight (may vary)	6,204 lbs.	2,814 kg
